Series-SF

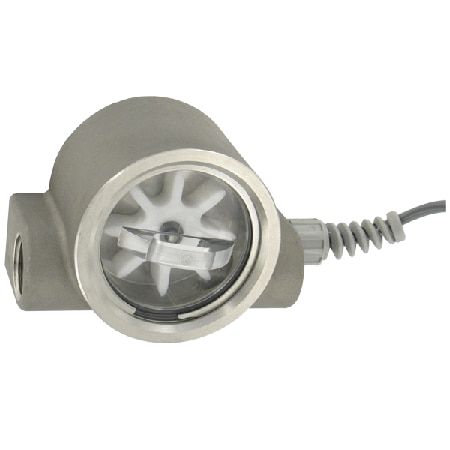

Sight Flow Transmitter, 4-20 mA Output, 316 SS/Polycarbonate Cover

(0)

Integrates tangential turbine technology with hermetically sealed circuitry to provide accurate flow measurement and control in the harshest environments
2-wire loop-powered design transmits a 4 to 20 mA signal proportional to flow rate for remote flow monitoring
Clear polycarbonate viewing cover option for visible indication of flow
316 SS cover offers added protection with pressure limit up to 500 psig (34 bar)
LED power indication, adjustable zero and span, polarity protection and over current limiting
Accurately measures flow in both directions and can be mounted in any orientation

See Product Overview

Series-SF

From ^$ 1,095.50

Shop Models

2 Variations available

See all series options below

Data Sheet

Product Overview

Accuracy ± 2 %
Compliance CE
Electrical Connection Pigtail Leads
Loop Resistance 1150 Ω
Media Compatibility Consult Factory
Operating Temperature, Max 225 °F
Operating Temperature, Min 20 °F
Output Detail 4 to 20 mA
Output Signal Current
Particle Size, Max 100 μm
Port 1 Size 1/2 in
Port 1 Type NPT Female
Repeatability 0.005
Response Time 2 s to 90%
Supply Power Type DC
Supply Voltage 12 to 35 Vdc
Viscosity Range 200 SSU
Volumetric Flow Rate, Max 15 GPM
Volumetric Flow Rate, Min 0.5 GPM
Wire Gauge 22 AWG

The Series SF Sight Flow Transmitter is a Series of sight indicators which can display flow or contents of pipelines and provide an analog 4 to 20 mA signal proportional to the flow rate. It is available with a 316 SS or clear polycarbonate cover.

Calibration Option available under Accessories.
