CNI-CB120-K-Series
Self-Contained Temperature Control Panel with Microprocessor-based Controller
Models In Stock
- Easy-to-Use Digital Controller with On/Off, PID and Ramp/Soak
- Available in 120 or 240 Vac Models
- Optional Ethernet Control with Built-In Web Server
- 120V Operation (240V Optional)
CNI-CB120-K-Series
From
$
1,641.19
Models In Stock
Product Overview
- Status Control false
- Control Output 2 SPST Relay, 2 SPST Relay
- Display Type 3.5 Digit Display, 3.5 Digit Display
- Height 203 mm, 203 mm
- Input Type Thermocouple, RTD, Voltage, mA, Thermocouple, RTD, Voltage, mA
- Length 152 mm, 152 mm
- Measurement Type Current, Temperature, Voltage, Current, Temperature, Voltage
- Number of Control Outputs 2, 2
- Number of Inputs 1, 1
- Operating Temperature, Max 55 °C, 55 °C
- Operating Temperature, Min 0 °C, 0 °C
- Output Signal None, None
- Supply Power Type AC, AC
- Weight 4.53 kg, 4.53 kg

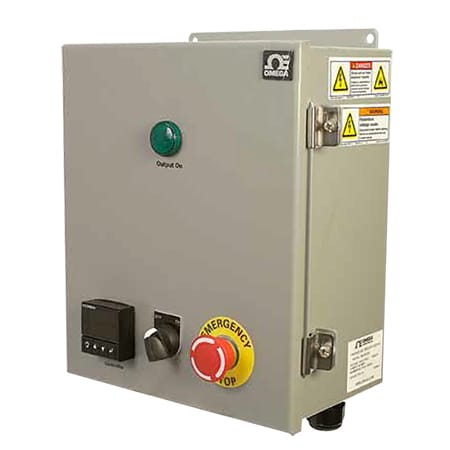

The CNI-CB120 Series is a self-contained temperature/process control panel that provides a complete SSR power control system design, eliminating the need to select, collect and assemble separate components. The preconfigured panels are ready to install, requiring only supply power, load and sensor hook-up. They are equipped with an OMEGAâ„¢ iSeries microprocessor-based controller with on/off, PID and ramp/soak capabilities along with a tri-color display. These control panels are supplied with a thermocouple input jack and M12 female connector for RTD or process inputs.
PDFs & Manuals
Show Ratings & Reviews
Rated 3 out of
5
by
MegA SquisH from
Blends well with my design
I operate a press with this control. I only wish there were more than one input.
Date published: 2017-03-01
Rated 4 out of
5
by
Al_111 from
Useful
It has Been working fine so far. We use them in our test stands.
Date published: 2023-05-07
Rated 1 out of
5
by
chip23 from
Not safe, poorly engineered.
Looking at the documentation and diagrams, this unit has no 3rd party approvals, and I see why. The documentation says it has devices rated 20amps in the manual, yet the rated output for the 120V version is 25 amps. Looking at wiring diagrams, control circuit fusing is in the wrong location, and incorrect style of fuses are used. Either someone needs to review and update the documentation, or the units need to be redesigned by someone who knows control panels.
Date published: 2018-07-17
Can this be ordered for a 20 A 250 V connector (NEMA 6-20) 3000 W, 20A oven application?
Thank you for your inquiry. We do not perform modifications on this particular line and would not be able to accommodate this request.
Standard is 20 Amp, 2400 W, 240 VAC. Thank you.
Date published: 2020-01-28
The id is always error, how can i find the id number? Or can i reset the id? Part Number: CNI-CB120-K. Thank you!
ID error means wrong password is entered. The "universal" password value is "5709" so this will unlock even if you have forgotten the password that was put in.
Date published: 2019-10-30
Hello can the controller be interfaced (r/w) by a third party software via Modbus TCP/IP connection? The third party software would act as the HMI for the operator and wondering if the product allows for this?
Hi SauK,
Thank you for the inquiry. This may be possible. Please refer the the iServer communication manual for the EIT interface protocol and commands the 3rd party software would need to follow.
https://assets.omega.com/manuals/M5023.pdf
Best regards
OMEGA
Date published: 2023-01-14
When I request for return, I was asked serial number, but I can only get the Part No. How to get the serial number? Is that necessary?
Thank you for your inquiry. Not all of our products have serial numbers. Referencing your Omega Order Number should be more than adequate for a Customer Care Rep to issue you an RMA without a serial number.
Date published: 2019-10-29
Can CNI-CB120SB-K-EI interface with Omega Enterprise Gateway Essential (Free Software) by plugging an ethernet cable in to the controller and a computer?
Hi BhavikD,
Yes this can be interfaced with the software.
Best regards
OMEGA
Date published: 2021-08-11
What is the country of origin of this unit?
Thank you for your inquiry. This unit is made in the U.S.A.
Date published: 2024-05-06
Is it possible to change the operating temperature range in any CNI-CB120SB series? I am looking for a max temp of 90-100 degree C
Thank you for your inquiry. The operating temperature range is FIXED. Not Adjustable.
Date published: 2022-10-03
