KU-VKA-Series
Rotary Disconnect Switch: Extended or Direct Handle
Models In Stock
- UL 508
- General use Rating 16 to 150A/600 Vac
- Switches for Direct or Extended Handles
- Non-Fused Switches
KU-VKA-Series
From
$
63.36
Models In Stock
Product Overview
- Status Control false
- Additional Features 1 Lockout Provisions for ΒΌ" Padlocks
- Color Options N/A
- Controller Type UL508
- Enclosure Material Polycarbonate
- Fuse Rating N/A
- Number of Poles 3
- Short-Circuit Protected 10 kA @ 600 V with Maximum Fuse
- Switch Type Rotary Disconnect Switch
- Voltage, Max 600 Vac

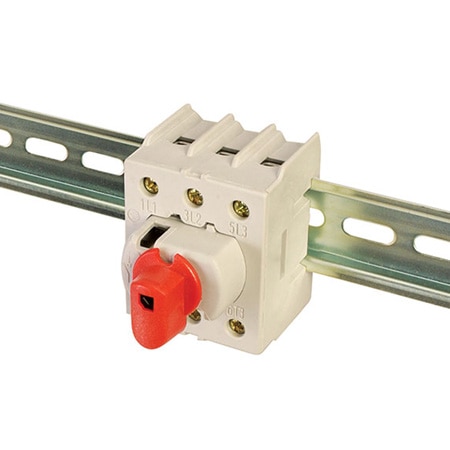

The KU-VKA Series rotary disconnect switches can be used for general purpose disconnects or as manual motor disconnect switches. They provide an economical solution for applications requiring simple power on-off switches or starting and stopping of motors. These switches are switches only and do not replace the need for fuses or circuit breakers. They are typically installed inside of an enclosure and can be mounted directly to the back panel on DIN rail and used as an internal switch. They can also be used as an external switch, mounting accessories are available for panel mounting or mounting with an extended door interlock handle.
See Specs above for additional information on mounting.
See Specs above for additional information on mounting.
PDFs & Manuals
Accessories
Yellow/Red door handle for use with interlocking sha ft, mounts in 22mm hole
$48.03
0 In Stock
