PX5200
Rangeable, Differential Pressure Transmitters with Display
- Compact Size
- NEMA 4X (IP65) Environmental Rating
- Backlit LCD for Easy Reading
- Display Can Be Scaled to Any Units
Product Overview
- Accuracy ± 0.5 %
- Accuracy Class > 0.25%
- Accuracy Detail ± 0.5% FS URL (upper range limit) @23°C includes linearity, hysteresis and repeatability
- Burst Pressure 800 psi Maximum
- Burst Pressure Note 800 psi
- Compensated Temperature, Max 60 °C
- Compensated Temperature, Min -10 °C
- Diameter 59.9 mm
- Display Type 4 Digit LCD
- Display Type Note 4-digit, 10mm LCD with LED Backlight, Accuracy: ± 0.5%
- Electrical Connection 1/2 in NPT female Conduit with Screw Terminal block
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP65, NEMA Type 4
- Insulation Resistance >100 MΩ @ 50 Vdc
- Length 130 mm
- Media Compatibility Air, Alkaline solutions, Any, Argon, Carbon dioxide, Dilute Acids, Gases, Helium, Hydraulic Oil, Hydrogen, Light Oil, Liquids, Nitrogen, Non-corrosive Dry Gasses, Oil, Oxygen, Solvents, Steam, Water, Water-based fluids
- Operating Temperature, Max 60 °C
- Operating Temperature, Min -10 °C
- Output Signal Current
- Measurement Pressure Type Differential
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
- Proof Pressure Up to 300 psi
- Proof Pressure Note 300 psi
- Response Time 2 ms
- Shock 10 g, 16 ms
- Span Setting Adjustable Range Span: -10 to 110% FS, Zero: -10 to 110% FS
- Stability ± 0.25%
- Storage Temperature, Max 65 °C
- Storage Temperature, Min -15 °C
- Supply Voltage 12 to 32 Vdc
- Thermal Effect on Zero error, Max ± 0.03% FS URL /°C,
- Vibration 5g 150 Hz
- Weight 454 g
- Width 114 mm
The PX5200 series has been replaced by the PX3005-DIFF series . The new PX3005-DIFF series has the same features and high accuracy, but at a lower price point. Many ranges are in stock, available for immediate shipment.

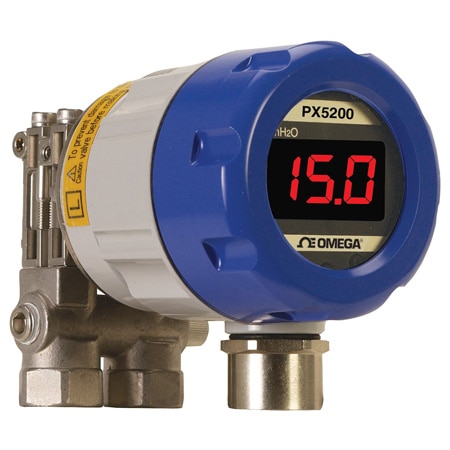

The OMEGA PX5200 is a compact wet/wet differential pressure dP transmitter, ideal for flow and tank level applications where reliable, low dP measurements are required. Equipped with a solid state sensor and a 316 Stainless Steel isolating diaphragm. The PX5200 can monitor a wide variety of wet or dry media. Available in unidirectional ranges from 0 - 4 to 0 - 400 inH2O and bi-directional ranges up to ± 200 inH2O, the PX5200 operates on line (static) pressures up to 300 psi.
A rugged aluminum NEMA 4X (IP65) enclosure measures only 65 mm (2.56') in diameter and incorporates a backlit LCD display for local reading.The output is a two-wire configurable 4 to 20 mA signal that can be adjusted to re-range the transmitter or 'tare' unwanted fluid head preloads. In addition, this instrument offers flow measurement/square root extraction, where the indicated flow rate and analog signal can be displayed. Rangeability for zero and span are from -10 to 110% FS URL (Upper Range Limit). This means a 20 inH2O transducer can have the zero set between -2 inH2O to FS 22 inH2O. Span can be set over that range also. For example zero could be set for 2 inH2O and 22 inH2O maximum so the output would be 4 mA at 2 inH2O, midpoint 12 mA would be 12 inH2O and 20 mA would be 22 inH2O.
