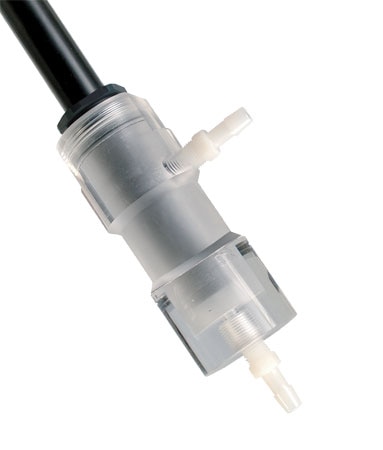

FCLTX-Series
PVC Free Chlorine Transmitter
- Direct 4 to 20 mA Output
- Amperometric Technology
- 500V Input to Output Isolation
- Multiple Ranges Available
FCLTX-Series
From
$
1,827.54
Product Overview
- Status Control false
- Additional Features 1 Integrated Temperature Compensation
- Body Material PVC
- Cable Length 3 m
- Compatibility Up to 50% ethanol/water, up to 50% glycerol/water
- Electrical Output 4 to 20 mA
- PH Measurement Range 5.5 to 9
- Pressure, Max 1 bar
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
- Sensitivity Bromine, ozone and ClO2 (chlorine dioxide)
- Supply Current 250 mA
- Supply Voltage 12 to 24 Vdc
- Temperature Measurement, Max 45 °C
- Temperature Measurement, Min 0 °C
- Volumetric Flow Rate, Max 135 l/h
- Volumetric Flow Rate, Min 45 l/h
The FCLTX series free chlorine sensors feature amperometric measurement technology. They are designed for use in water treatment disinfection applications and for use with chlorine generators, pools, etc. The sensors are available in several ranges for detecting ppm levels of free chlorine. Choose the FCLTX-102 for 0 to 2 ppm, FCLTX-105 for 0 to 5 ppm or FCLTX-110 for 0 to 10 ppm of free chlorine. Membrane caps and fill solution are easily replaced to maximize sensor life. Sensors can be used in new installations with Omega flow cell or installed as replacement for other 4 to 20 mA output free chlorine (FCl) sensors.
SPECIFICATIONS
Measuring Range:
FCLTX: 0 to 2, 0 to 5, or 0 to 10 ppm free chlorine
pH Range:
FCLTX: 5.5 to 9
Cross Sensitivity:
FCLTX: Bromine, ozone and ClO2 (chlorine dioxide)
Body Material: PVC
Temperature Range: 0 to 45°C (32 to 113°F)
Temperature Compensation: Integrated
Maximum Pressure: 1 Bar (14.7 psig)
Cable Length: 3 m (10') 2 conductors
Flow Cell Process Connection: 1.4 FNPT inlet and outlet
Output: 4 to 20 mA
Flow Range:
Minimum: 45 l/hr (0.2 gpm)
Maximum: 135 l/hr (0.6 gpm)
Supply Voltage: 12 to 24 Vdc, 250 mA min
Chemical Compatibility: Up to 50% ethanol/water, up to 50% glycerol/water
SPECIFICATIONS
Measuring Range:
FCLTX: 0 to 2, 0 to 5, or 0 to 10 ppm free chlorine
pH Range:
FCLTX: 5.5 to 9
Cross Sensitivity:
FCLTX: Bromine, ozone and ClO2 (chlorine dioxide)
Body Material: PVC
Temperature Range: 0 to 45°C (32 to 113°F)
Temperature Compensation: Integrated
Maximum Pressure: 1 Bar (14.7 psig)
Cable Length: 3 m (10') 2 conductors
Flow Cell Process Connection: 1.4 FNPT inlet and outlet
Output: 4 to 20 mA
Flow Range:
Minimum: 45 l/hr (0.2 gpm)
Maximum: 135 l/hr (0.6 gpm)
Supply Voltage: 12 to 24 Vdc, 250 mA min
Chemical Compatibility: Up to 50% ethanol/water, up to 50% glycerol/water
PDFs & Manuals
Show Ratings & Reviews
HI team Omega, can you share data detail for calibration 1 set free chlorine analyzer on Manufacturing, we already buying ( DPI16,FCLTX-110, and FlowCell72) please advice
Thank you for your inquiry! When received the sensors should be span calibrated but the zero point should not have to be adjusted. Using the right potentiometer the output can be increased or decreased to match with the testing samples thus ensuring the proper output based on the units range. The DPi16 will have to be scaled for the 4-20 mA signal according to the process in the manual. This will allow for the screen to display in ppm based on the 4-20 mA input. If you have further questions please feel free to contact us by email at flow@omega.com.
Date published: 2022-03-21
