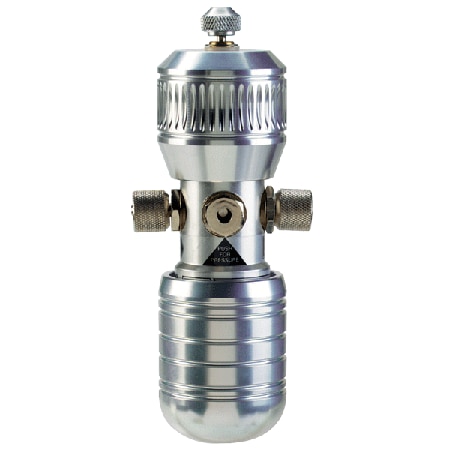

Model-HP-HAND-PUMP
Portable Hand Pump for Pneumatic Pressure/Vacuum, 45 psig, -27 in Hg
- Offers vacuum or positive pressure sourcing
- Compact and portable
- Integral relief valve for fine adjustment
- Reference gage recommendation: DPG-022
Model-HP-HAND-PUMP
From
$
2,791.90
Product Overview
- Hose Length 39 in
- Materials N/A
- Media Compatibility Air
- Number of Hoses 2
- Process Connection Size 1/4 in
- Process Connection Type NPT Female
The Model HP Hand Pump provides a dual source of pneumatic pressure and vacuum for verifying the calibration of pressure instrumentation. Pump can generate pressures up to 45 psig (3 bar) and vacuum to -27 in Hg (-910 mbar). The compact pump is designed for portability and single hand operation. Model HP features a pressure relief valve and fine adjustment for control better than 0.0015 psi (0.1 mbar). Pump includes two 39" (1 m) hoses terminating in 1/4" female NPT connections and instruction manual.
Product Applications
- Test instrument calibration
- Pressure switch calibration
- Pressure transmitter calibration
