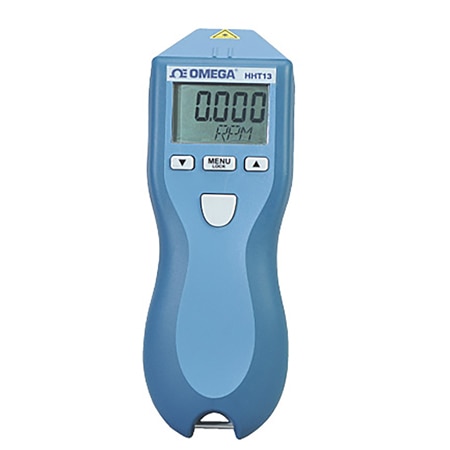

HHT13

5 to 200,000 rpm

Click and hold to zoom

Measurement Type

Flash

$347.24

Item# HHT13

Volume Discount Schedule

QTY

Added to Your Shopping Cart

In Stock

Lead Time (If not in stock): 5 Days

Brand
Accuracy	± 0.01 %
Adjustments	4-quadrant, pressure-sensitive joystick button adjusts flash rate, x2 and ÷2
Battery Size and Type	NiMh
Charging Time	Fully recharges in 4 to 5 hours
Display Size	7.62 mm (0.30 in)
Display Type	6 Digit LCD
External Mode	Range and Display: 5 to 12,500 fpm Update Rate: 1 second typical fpm Accuracy: ±0.1 fpm or ±0.01 of reading Trigger-to-Flash Delay: < 5 µs External Input: 0 to 5V, 5 TTL compatible (+12 Vp max), 20 µs min pulse width; positive edge triggered
Height	77.1 mm
Internal Mode	Flash Range: 100 to 12,500 fpm Resolution: 0.1 FPM Accuracy: ±0.5 FPM or ±0.01% of reading Update Rate: Instantaneous
Length	237.3 mm
Material Construction Option	1 Rechargeable Battery Pack
Measurement Note	Flash Energy: 150 mJ/flash, 1100 LUX as bright as 10 W units; Flash Duration: 10 to 30 µs
Measurement Type	Flash
Measuring Range	100 to 12500 fpm
Resolution	0.1 fpm
Running Time	100 minutes typical at 1800 fpm with fully charged batteries
Status Control	false
Tachometer Mode	Range: 5 to 250,000 rpm Accuracy: ± 0.01% or 0.1 rpm Update Rate: 1 second typical External Input: 0 to 5V TTL compatible (+12 Vp max) 20 µs min pulse width; positive edge triggered
Weight	0.63 kg
