HHPT-51

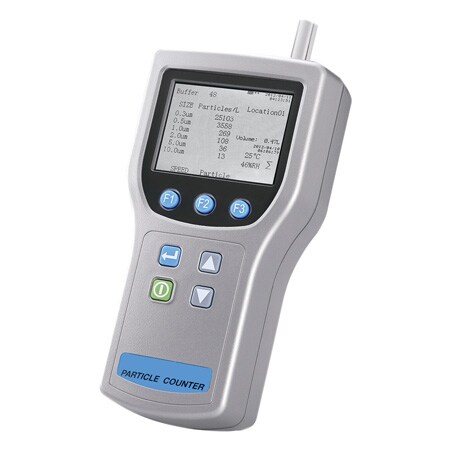

Handheld Particle Counter With SD Card Data Recorder and USB Interface
Choose a Variant
measurement-type
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 7 % |
| Approvals | Complies with CE, JIS B9921; 1997, ISO 21501-4 |
| Battery Size and Type | Li-ion |
| Calibration | PSL particles in air |
| Charging Time | 2 hours (fast charge mode), 27 hours (trickle charge mode) |
| Coincidence Loss | 5% at 2,000,000 particles per cubic ft. |
| Counter Input Note | Counting Efficiency: 50% at 0.3 µm; 100% for particles > 0.45 µm (per JIS B9921:1997) |
| Data Interface | USB |
| Device Modes | audio, Concentration, totalize |
| Display Type | TFT |
| Height | 11 cm |
| Length | 6.7 cm |
| Measurement Type | Air Contamination |
| Memory | 500 sample records (rotating buffer) |
| Number of Channels | 6 |
| Number of Channels Note | Channels: 0.3, 0.5, 1.0, 2.0, 5.0, 10.0 µm |
| Operating Temperature, Max | 40 °C |
| Operating Temperature, Min | 10 °C |
| Operating Time | 4 hrs |
| Relative Humidity | 20% to 90% |
| Source of Light | Laser diode |
| Storage Humidity, Max | Up to 90% |
| Storage Temperature, Max | 50 °C |
| Storage Temperature, Min | -10 °C |
| Supply Power Note | AC adapter, 12 Vdc at 3 A, 100 to 240 Vac, 50 to 60 Hz |
| Supply Power Type | AC |
| Supply Voltage | 12 Vdc |
| Time Delay | 0 to 24 hours |
| Vacuum Rating | Internal pump flow controlled |
| Variables Logged | Date, time, counts, relative humidity, temperature, sample volumes, alarms and labels |
| Volumetric Flow Rate, Max | 2.83 l/min |
| Weight | 875 g |
| Width | 21.8 cm |
| Zero Count | 1 count/5 minute (per JIS B9921:1997) |
| See All Specs | |
