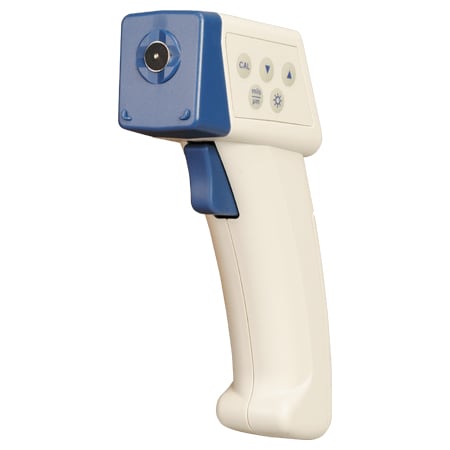

DTG-500
Coating Thickness Gauge
Choose a Variant
Accuracy
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 3 % |
| Accuracy Detail | Accuracy:_x000D_ 0 to 7.8 mils: ±4 digits_x000D_ 0 to 199 µm: ±7 digits_x000D_ 7.9 to 40 mils (200 to 1000 µm): ±3% + 4 digits_x000D_ Stated Accuracy:_x000D_ @23 ±5°C < 75% RH |
| Auto-Shutoff | 15 sec |
| Battery Size and Type | Alkaline 9V |
| Battery life | 9 hr |
| Commodity Code | 9017.80.0000 |
| DepthValue | 3.9 |
| Display Type | Backlit LCD |
| Display Type Note | 3-digit LCD with max readout of 1999 counts |
| ECCN | EAR99 |
| GrossWeightValue | 0.5 |
| Height | 148 mm |
| HeightUoM | IN |
| HeightValue | 2.4 |
| Length | 42 mm |
| Measuring Range | 0 to 40 mils/0 to 1000 µm |
| NetWeightValue | 0.505 |
| OkForExport | true |
| Operating Temperature, Max | 50 °C |
| Operating Temperature, Min | 0 °C |
| Relative Humidity | < 75 % |
| Resolution | 0.1 mil/1 µm |
| Response Time | 1 sec |
| Storage Humidity, Max | 0.8 |
| Storage Temperature, Max | 60 °C |
| Storage Temperature, Min | -20 °C |
| Taxonomy Level 1 | QGV |
| Taxonomy Level 2 | ME |
| Taxonomy Level 3 | HH |
| Taxonomy Level 4 | PO |
| Weight | 157 g |
| WeightUoM | LB |
| Width | 105 mm |
| WidthValue | 7.15 |
| Country of Origin | Taiwan |
| See All Specs | |
