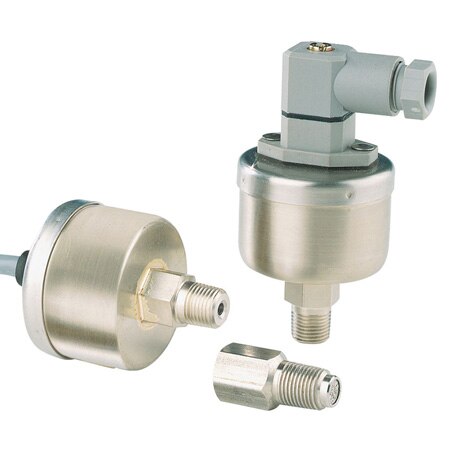

PX176
Waterproof Pressure Transducers - Discontinued, See PX309
- ±1% Interchangeability
- Sealed for Harsh Environments
- 1 to 6 Vdc Output
- 9 to 20 Vdc Power
Product Overview
- Accuracy ± 1 %
- Accuracy Class > 0.25%
- Accuracy Detail ± 1% Full Scale
- Burst Pressure 20x Full Scale
- Burst Pressure Note 20X FS; 10X: 50 to 200 psi; 5X: 500 psi and up
- Cable Length 900 mm
- Cavity Volume 14.9 cc
- Compensated Temperature, Max 85 °C
- Compensated Temperature, Min 0 °C
- Electrical Connection Cable
- Electrical Output 1 to 6 V
- Enclosure Material 300 Stainless Steel
- Gauge Type Piezoresistive on bending beam
- Hysteresis ± 0.25% FS
- Input Resistance 2 MΩ
- Linearity Error ± 0.50%
- Operating Temperature, Max 105 °C
- Operating Temperature, Min -55 °C
- Output Signal Voltage
- Pressure, Min 0 psi
- Pressure Type Gauge
- Process Connection Size 1/8 in
- Process Connection Type NPT Male
- Proof Pressure 2x Full Scale
- Proof Pressure Note 2X FS; 1.5x over 200 psi
- Span Setting Adjustable Range 5 ± 0.1 Vdc
- Supply Power Note 9 to 20 Vdc at 15 mA (polarity protection)
- Supply Voltage 9 to 20 Vdc
- Thermal Effect on Span error, Max ± 1% gage
- Weight 113 g
- Zero/Balance Error ± 1% FS
The PX176/177 series has been discontinued. Please see the PX309 or PX181B as a possible alternatives or contact our Pressure Engineering department.
SPECIFICATIONS
Excitation: 9 to 20 Vdc at 15 mA (polarity protection)
Output: 1 to 6 Vdc
Input Resistance: 2 MΩ at 25 Vdc
PERFORMANCE
Accuracy: ±1.0% full scale
Linearity: ±0.5% full scale
Hysteresis: ±0.25% full scale
Zero Balance: ±1% full scale
Span Tolerance: 5 ±0.1 Vdc
Operating Temperature Range: -55 to 105 °C (-67 to 221 °F)
Compensated Temperature Range: 0 to 85 °C (32 to 185 °F)
Thermal Zero Effect: ±0.02% rdg/ °C ( ±0.01% rdg/ °F)
Thermal Sensitivity Effect: ±0.02% rdg/ °C ( ±0.01% rdg/ °F)
Proof Pressure: 2x full scale; 1.5x over 200 psi
Burst Pressure: 20x full scale; 10x: 50 to 200 psi; 5x: 500 psi and up
CONSTRUCTION
Gages: Piezoresistive on bending beam
Body/Diaphragm Material: 300 Series SS (silver, copper, nickel, cadmium brazed)
Pressure Port: 1/8-27 NPT
ELECTRICAL CONNECTION
Cable Style: 900 mm (36') 3-lead shielded PVC
Pressure Cavity Volume: 0.091 in³
Weight: 113 g (4 oz)
Frequency Response: 50 Hz
