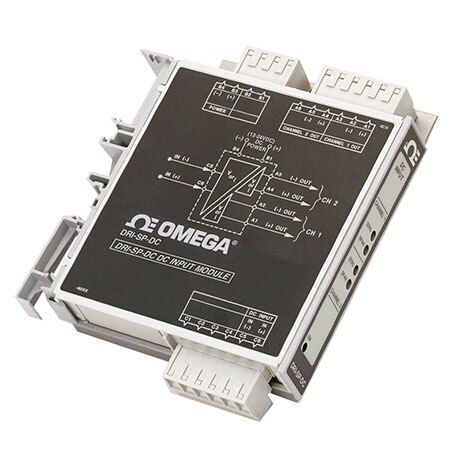

DRI-SP-DC
DC Powered DIN Rail 4 to 20 mA Signal Splitter
Product Specs
<< See all Product Models| Brand |
 |
| Accuracy | ± 0.1 % |
| Accuracy Detail | ≤ ±0.1% of full-scale input typical ≤ ±0.2% maximum @ 23°C including linearity, repeatability |
| Current Measurement Range | 4 to 20 mA |
| Electrical Connection | Screw Terminal |
| Electrical Output | 4 to 20 mA |
| Height | 117 mm |
| Impedance Input | ≤ 20 Ω |
| Input Type | Current |
| Isolation | ≥ 2000 Vac between input and output and channel to-channel |
| LED Indicators | Green LED indicates power on |
| Length | 105 mm |
| Mounting | DIN Rail Mount |
| Number of Inputs | 1 |
| Operating Temperature, Max | 60 °C |
| Operating Temperature, Min | -5 °C |
| Output Signal | Current |
| Protection | Input Protection: 24 Vdc |
| Relative Humidity | Operating: 15 to 95 %RH @ 45°C (113°F) ;Soak: 90% RH for 24 hours @ 60°C (140°F) |
| Response Time | 25 msec |
| Response Time Note | 25 msec typical (10 to 90%) |
| Span Adjustment | ± 50 % |
| Stability | ≤ 0.025%/°C of full-scale maximum for full-scale and zero |
| Storage Temperature, Max | 80 °C |
| Storage Temperature, Min | -40 °C |
| Supply Power Note | 10.8 to 26.4 Vdc, 2 W per channel max Common Mode: 2000 Vac, input to ground |
| Supply Power Type | DC |
| Supply Voltage | 10.8 to 26.4 Vdc |
| Weight | 227 g |
| Width | 22 mm |
| Wire Gauge | 22 to 12 AWG |
| Zero Setting Adjustable Range | Front accessed 10 turn pot, ± 50% of range of zero |
