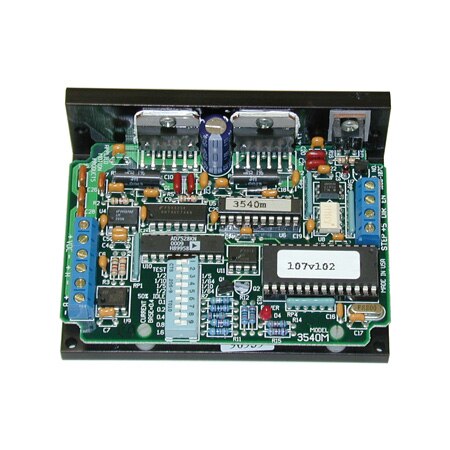

3540M
Microstepping Motor Drives
Product Specs
<< See all Product Models| Brand |
 |
| Additional Features 1 | Power Supply (Required for Drive Operation): Recommended: OMPS150A24; 24 Vdc, 6.3 A |
| Additional Features 2 | Dip Switch/Trim Pot |
| Amplifier Type | Dual, bipolar MOSFET H-Bridge, pulse width modulated three state switching at 20 KHz |
| Control Interfaces & Operating Modes | Motor Position: 4 position (A+, A-, B+, B-); DC Input Position: 2 position (V+, V-); Signal Input Position: 4 position (+5, STEP, DIR, EN) |
| Control Mode | Pulse and Direction |
| Driver Current | 0.4 to 3.5 A/Phase |
| Electrical Connection | European Screw Terminal |
| Input Control Signal | 5V, 5 mA |
| Input Voltage | 5 V |
| Mechanical Form-Factor & Load Capacity | Motor Wire Gauge: 18 AWG; Chassis Dimensions: 38.1 x 76.2 x 101.6 mm |
| Motion Precision & Smoothness | Microstepping: Four switch selectable step resolutions with 1.8° motor; half Step (400 steps/rev); 1 ⁄5 step (1000 s/r); 1 ⁄10 step (2000 s/r); 1 ⁄64 step (12,800 s/r) |
| Number of Inputs | 3 |
| Operating Temperature, Max | 70 °C |
| Operating Temperature, Min | 0 °C |
| Process Connection | N/A |
| Supply Voltage | 12 to 42 Vdc |
| See All Specs | |
