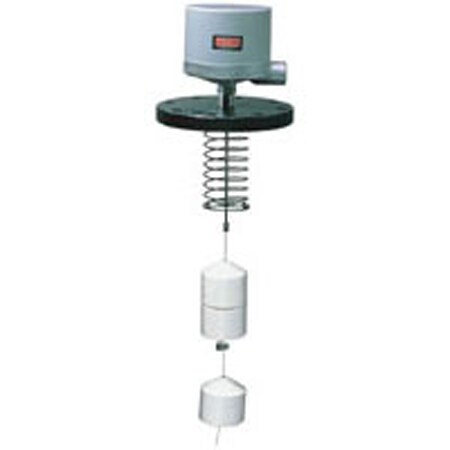

Mercoid® Displacer Controls for Precise Tank Level Control - Series 190/195
- Rugged displacer design handles dirty or viscous liquids without clogging or turbulence issues.
- Operates with specific gravity as low as 0.5 for broad liquid compatibility.
- Supports single or two-stage operation for alarms, shutdown, or pump control.
- Explosion-proof or weatherproof enclosures with hermetic snap or mercury switches.
Series-190-195
From
$
0.00
Can't find the right model?
Use our custom configurator to fine tune your product
Product Overview
The Series 190 and 195 Displacer Level Controls provide reliable and durable liquid level monitoring for demanding industrial applications. Built with a rugged displacer design, these controls operate dependably in dirty, viscous, or turbulent liquids where floats or sensors may fail. With the ability to function in liquids with specific gravities as low as 0.5, the Series 190/195 offers broad compatibility across chemical, refining, power generation, and water treatment processes. These controls can be configured for single- or two-stage operation, making them ideal for applications such as high/low level alarms, pump control, and shutdown protection. For added safety and flexibility, models are available with hermetically sealed snap switches or mercury switches, housed in weatherproof or explosion-proof enclosures to meet site requirements. Durable materials such as porcelain or 316 stainless steel displacers further extend service life in challenging environments, ensuring dependable performance and reduced maintenance.
Show Ratings & Reviews
A195-X-X-X-X-X-X-X-OPT MERCOID SERIES 195 LIQUID LEVEL CONTROL
1ST SYMBOL (1ST X) OPERATION
4 OPERATION 4
6 OPERATION 6
7 OPERATION 7
8 OPERATION 8
2ND SYMBOL (2ND X) ENCLOSURE
G GENERAL PURPOSE NEMA 1
WT WATERTIGHT NEMA-4, 4X
E EP CL I GRP B,C,D CL II GRP E,F,G NEMA-7, 9
EV EP VP CL I GRP B,C,D CL II GRP E,F,G NEMA-7, 9
3RD SYMBOL (3RD X) CIRCUITS
4806-06
4806-10
4810-10
4813-13
4813-14
4814-13
4814-14
4815-15
4820-20
4821-21
4820-21
4821-20
7806-06 7806HM-06HM
7810-06
7810-10 7810HM-10HM
9806-06
9810-10
4TH SYMBOL (4TH X) DISPLACER TYPE
P PORCELAIN (ONLY WITH A195)
S 316SS
S304 304SS
K KARBATE (OBS ECR37750)
I INTRF DISPLACER 3-1/2 DIA X 10
5TH SYMBOL (5TH X) CABLE LENGTH
A 10 FT
B 15 FT
C 20 FT
D 25 FT
E 30 FT
F 40 FT
G 50 FT
6TH SYMBOL (6TH X) SPECIFIC GRAVITY
?.? CUSTOMER SPECIFIED SPECIFIC GRAVITY
7TH SYMBOL (7TH X) FLANGE
00 3" NPT CONNECTION NO FLANGE
0 3/4" SCREW CONNECTION NO FLANGE
6 3" 150# RF CARBON STEEL
7 4" 150# RF CARBON STEEL
8 5" 150# RF CARBON STEEL
9 6" 150# RF CARBON STEEL
10 8" 150# RF CARBON STEEL
11 3" 300# RF CARBON STEEL
12 4" 300# RF CARBON STEEL
13 5" 300# RF CARBON STEEL
14 6" 300# RF CARBON STEEL
15 8" 300# RF CARBON STEEL
6S 3" 150# RF 316 STAINLESS STEEL
7S 4" 150# RF 316 STAINLESS STEEL
8S 5" 150# RF 316 STAINLESS STEEL
9S 6" 150# RF 316 STAINLESS STEEL
10S 8" 150# RF 316 STAINLESS STEEL
11S 3" 300# RF 316 STAINLESS STEEL
12S 4" 300# RF 316 STAINLESS STEEL
13S 5" 300# RF 316 STAINLESS STEEL
14S 6" 300# RF 316 STAINLESS STEEL
15S 8" 300# RF 316 STAINLESS STEEL
OPTIONS (OPT)
-INC INCONEL SPRING (316SST IS STD)
-STW SS TAG WIRED
-01 BREATHER ONLY (E-HOUSING ONLY)
-02 DRAIN ONLY (E-HOUSING ONLY)
-12 BREATHER AND DRAIN (E-HOUSING ONLY)
-23720 FUNGUS PROOFING SPEC 23720
NOTES
1. CAST IRON FLANGES OBSOLETED 1-1-2018 PER ECR-041970
1 3" 125# CAST IRON (AA190, BB190, A195 ONLY)
2 4" 125# CAST IRON
3 5" 125# CAST IRON
4 6" 125# CAST IRON
5 8" 125# CAST IRON
16 3" 250# RF CAST IRON
17 4" 250# RF CAST IRON
18 5" 250# RF CAST IRON
19 6" 250# RF CAST IRON
20 8" 250# RF CAST IRON
2. THE FOLLOWING OPTION WAS OBSOLETED PER ECR-046187
-R1 MANUAL RESET LOWER STAGE
