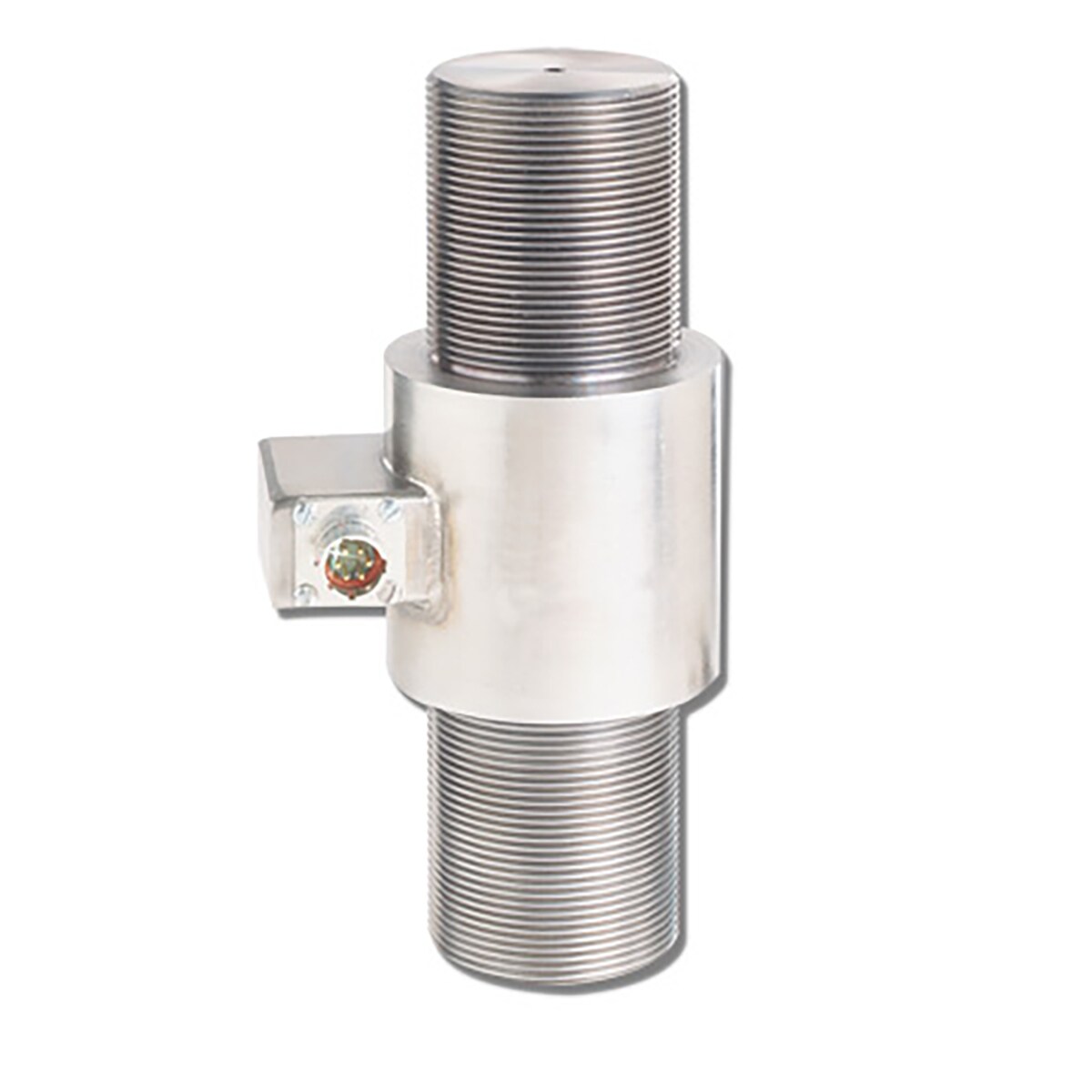

LC712-50K
50,000 lbf, ± 0.1%, Linearity, 2 mV/V Output, MIL-26482-I 10-6P
Choose a Variant
Load Cell Capacity
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| 5-Point Calibration | 0%, 50%, 100%, 50%, 0% (in tension) |
| Accuracy | ± 0.15 % |
| Bridge Resistance | 350 Ω |
| Cable Length | 0 ft |
| Calibration Option | 5 POINT NIST |
| Electrical Connection | MIL-26482-I 10-6P |
| Electrical Output | 2 mV/V |
| Enclosure Ratings | IP67 |
| Force Type | Tension |
| GrossWeightValue | 0.15 |
| Height | 6.5 in |
| Hysteresis | ± 0.10% |
| Linearity | ± 0.10% |
| Load Cell Capacity | 50000 lbF |
| Load Cell Type | Tension Link |
| Materials | Stainless Steel |
| Mating Connector | MIL-26482-I 10-6S |
| Operating Temperature, Max | 121 °C |
| Operating Temperature, Min | -34 °C |
| Outer Diameter | 3 in |
| Overload, Max | 300% FS |
| Process Temperature, Max | 71 °C |
| Process Temperature, Min | 16 °C |
| Repeatability | ± 0.05% |
| Safe Overload | 150% FS |
| Series ID | LC702 |
| Supply Power Note | 10 Vdc, 15 Vdc maximum |
| Supply Voltage | 10 Vdc |
| Thermal Span Effect | ± 0.009% FSO/°C |
| Thermal Zero Effect | ± 0.009% FSO/°C |
| Wiring/Connector Table | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input |
| Zero/Balance Error | ± 1% |
