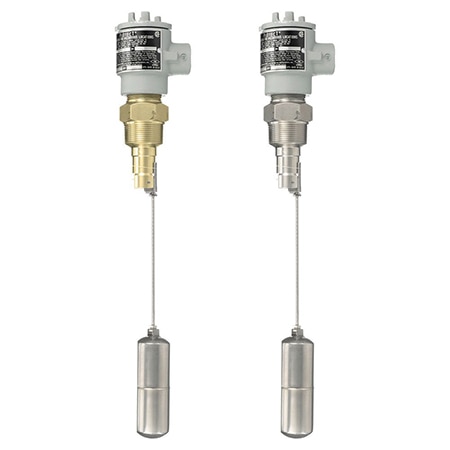

Series-L4

Magnetic Float Switch for Tank Level Control – No Moving Parts

(0)

Models In Stock

Superior performance due to unique magnetically-actuated switching design
Long product life with no bellows, springs, or seals to fail
Avoids clogs using a free-swinging float that attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm
Prevents vertical hang up with float arm hinge design that limits the arm angle

See Product Overview

Series-L4

From ^$ 862.20

Models In Stock

Shop Models

4 Variations available

See all series options below

Data Sheet

Can't find the right model?

Use our custom configurator to fine tune your product

Product Overview

Applications Boilers, Oil, Pump Control
Compliance ATEX, CE, CSA, FM, IECEx, UL
Conduit Connection 3/4 in NPT Female
Deadband 3/4 in (19 mm)
Electrical Connection Pigtail Leads
Electrical Rating Note UL, FM, ATEX and IECEx models: 10 A @ 125/250 VAC (V~). CSA models: 5 A @ 125/250 VAC (V~); 5 A res., 3 A ind. @ 30 VDC (V ). MV option: 1 A @ 125 VAC (V~); 1 A res., .5 A ind. @ 30 VDC (V ). MT option: 5 A @ 25/250 VAC (V~). [MT and MV option not UL, CSA, FM, ATEX or IECEx]
Enclosure Ratings Hazardous Location Rated
Enclosure Ratings Note Weatherproof and Explosion-proof. **Listed with UL and CSA for Class I, Groups C and D; Class II, Groups E, F, and G; ATEX 2813 II 2 G Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤Process Temp≤73°C. EU-Type Certificate No.: KEMA 03 ATEX 2383. ATEX Standards: EN 60079-0:2012+A11:2013. IECEx Certified: For Ex db IIB T6 Gb -20°C≤Tamb≤73°C. -20°C≤Process Temp≤73°C. IECEx Certificate of Conformity: IECEx DEK 11.0071. IECEx Standards: IEC 60079-0:2011; IEC 60079-1:2014.
Media Compatibility Alcohols, Compatible Liquids, Oils, Water
Operating Temperature, Max 163 °F
Operating Temperature, Min -4 °F
Pressure Type Gauge
Process Connection Note 1-1/2˝ (38.10 mm) male NPT or 1-1/2˝ (38.10 mm) male BSPT standard, 2-1/2˝ (63.50 mm) male NPT or 2-1/2˝ (63.50 mm) male BSPT standard optional floats
Process Connection Size 1 1/2 in
Process Connection Type NPT Male
Process Temperature, Max 163 °F
Process Temperature, Min -4 °F
Sensor Temperature, Max 275 °F
Sensor Temperature, Min 4 °F
Specific Gravity 0.7
Specific Gravity Note 0.7 minimum with standard float. For other floats see model chart
Switch Type SPDT NO/NC, Selectable
Switch Type Note SPDT snap switch
Temperature Note 4 to 275°F (-20 to 135°C) standard, MT high temperature option 400°F (205°C) [MT option not UL, CSA, ATEX or IECEx]. ATEX and IECEx options
Weight 4 lb

Rugged and reliable the Series L4 Flotect® Float Switch operates automatically to indicate tank level. Perfect for starting or stopping pumps, opening or closing valves, or actuating level alarm signals. A unique magnetically actuated switching design gives superior performance. There are no bellows, springs, or seals to fail. Instead, the free-swinging float attracts a magnet within the solid metal switch body, actuating a snap switch by means of a simple lever arm. Float arm hinge design limits the arm angle to prevent vertical hang up.

California Residents: Click Here for Proposition 65 WARNING.

Product Applications

Direct pump control for maintaining level
Automatic tank dump operations
Control levels or provide alarms in sumps, scrubber systems, hydro-pneumatic tanks, low pressure boilers, and various water/wastewater treatment processes
Level control
Valve control
