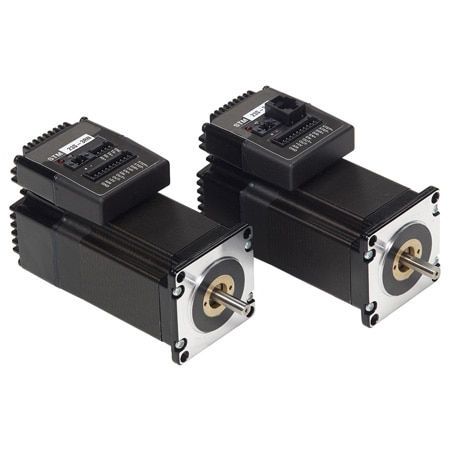

SMT-Srs-Stepper-Motors

Integrated Stepper Motors,Advanced Features,Control Options

Models In Stock

From ^$ 537.89

Models In Stock

More Variations Available

Product Overview

Amplifier Type Dual H-Bridge, 4 Quadrant
Mechanical Form-Factor & Load Capacity Rotor Inertia: 0.0037 oz-inch²
Motion Precision & Smoothness Microstep Resolution: Software selectable from 200 to 51200 steps/rev in increments of 2 steps/rev; Anti-Resonance: Raises the system damping ratio to eliminate midrange instability and allow stable operation throughout the speed range and improves settling time; Torque Ripple Smoothing: Allows for fine adjustment of phase current waveform harmonic content to reduce low-speed torque ripple in the range 0.25 to 1.5 rps; Microstep Emulation: Performs high resolution stepping by synthesizing fine microsteps from coarse steps (step and direction mode only); Command Signal Smoothing: Software configurable filtering reduces jerk and excitation of extraneous system resonances (step and direction mode only)
Operating Temperature, Max 50 °C
Operating Temperature, Min -20 °C
Process Temperature, Max 40 °C
Process Temperature, Min 0 °C
Process Temperature Note 0 to 40°C (32 to 104°F) (mounted to suitable heatsink)
Protection Over-voltage, undervoltage, over-temp, motor/wiring shorts (phase-to-phase, phase-to-ground)
Relative Humidity 90 % non-condensing
Supply Power Note External 12 to 70 Vdc power supply required
Supply Voltage 12 to 70Vdc
