ACC787A-series
Industrial, Low Profile Accelerometers
Models In Stock
- Corrosion Resistant
- Reverse Wiring Protection
- Rugged Industrial Design
- Ground Isolated
ACC787A-series
From
$
426.34
Models In Stock
Product Overview
- Status Control false
- Additional Features 1 Low Profile Industrial Grade
- Bandwidth ±10%: 1 to 5000 Hz,±3 dB: 0.7 to 10,000 Hz
- Electrical Output 12 Vdc
- Enclosure Material 316L Stainless Steel
- Ground Isolated Case
- Inrush Current 2 to 10 mA
- Linearity Error 0.01
- Mating Connector Amphenol 97-3106A-10SL-4S type
- Measuring Range ±80 g
- Mounting captive hex head screw
- Mounting Note 1 ⁄4-28 captive hex head screw with 1.2 mm (0.046") diameter safety wire hole
- Natural frequency 22 kHz
- Noise Calibration Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz
- Operating Temperature, Max 120 °C
- Operating Temperature, Min -50 °C
- Output Resistance 100 Ω
- Overload Capacity 5000 g peak
- Seal Options Hermetic to 10^-8 cc/s
- Sensitivity Note Transverse Sensitivity, Max: 5% of axial,Electromagnetic Sensitivity, Max: 70 µg/gauss, Strain Sensitivity: Max 0.0002 g/microstrain
- Supply Voltage 18 to 30 Vdc
- Vibration 500 g peak
- Weight 145 g

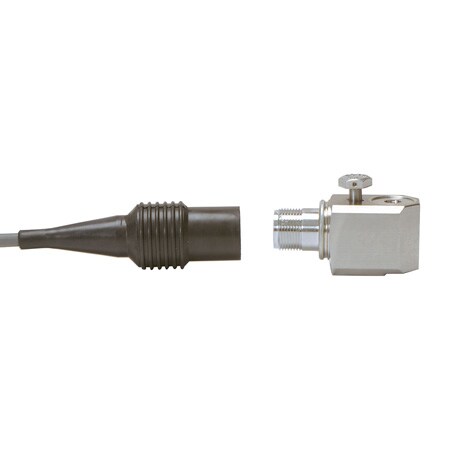

The OMEGAROMETER Series accelerometers are one of the best accelerometers designed for industrial vibration measurements. These accelerometers feature a hermetically sealed 316L stainless steel case suitable for harsh environments. The ACC787A is a general purpose accelerometer with a low profile side cable exit.
NOTES:
1 To minimize signal distortion when driving long cables or high-vibration signals, 24 to 30 Vdc powering is recommended. The higher-level constant current source should be used when driving long cables.
2 A maximum current of 6 mA is recommended for operating temperatures above 100°C (212°F).
NOTES:
1 To minimize signal distortion when driving long cables or high-vibration signals, 24 to 30 Vdc powering is recommended. The higher-level constant current source should be used when driving long cables.
2 A maximum current of 6 mA is recommended for operating temperatures above 100°C (212°F).
PDFs & Manuals
Show Ratings & Reviews
I need your confirmation about the maximum distance between the sensor and the PLC, in this moment our client have 70 meters between sensor and PLC, I need confirmation about the required cable for this sensor. The client have a model 1756-IA16I.
Cabling for accelerometers need to kept as short as possible. If you are need to run a signal a long distance you would have to convert the signal 4 to 20mADC signal. Omega does not offer this type of signal conditioning. We suggest you contact someone like Dytran Instruments for a complete system consisting of the sensor, cabling and signal conditioning
Date published: 2023-05-04
