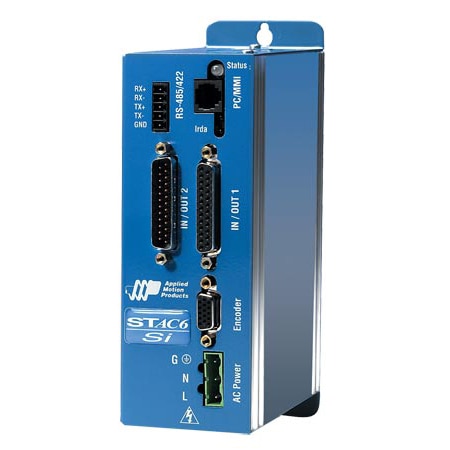

STAC6-SI

0.0

(0)

High Performance Stepper Drives with Integrated Power Supply

Click and hold to zoom

Choose a Variant

Driver Current

0.5 to 6 A/Phase 0.5 to 3.2 A/Phase

Number of Inputs

15 7

See all Models See all accessories

$2,212.41

Item# STAC6-SI

QTY

Added to Your Shopping Cart

In Stock

Lead Time (If not in stock): 7 weeks

+ Add to Project List

See Specs

Product Specs

<< See all Product Models

Brand
Additional Features 2	Si Programmer™ software.
Amplifier Type	MOSFET, Dual H-Bridge, 4 Quadrant
Control Characteristics	Non-Volatile Storage: Configurations are stored in FLASH memory Step and Direction Inputs: Optically Isolated: 5 to 12V; minimum pulse width = 200 ns; maximum pulse frequency = 2 MHz Speed Range: Depends upon selected resolution; amplifier is suitable for speeds up to 133 rps Resolution: Software selectable from 200 to 51,200 steps/rev in increments of 1 step/rev Encoder Option: Differential line receivers suitable for 200 KHz or greater
Control Interfaces & Operating Modes	Step and Direction Inputs: Optically Isolated: 5 to 12V; minimum pulse width = 200 ns; maximum pulse frequency = 2 MHz; Digital Inputs: 15 Digital Inputs: Two 5V, Thirteen 12 to 24 V; Digital Output: 7 Digital Outputs: 30V; Motor Regeneration: Built-in regeneration circuit (25 W max);Current Control: 4 state PWM at 20 KHz
Control Mode	Step and Direction, Velocity, Streaming Commands, Analog Input
Current Rating	0.5 to 6.0 A in 0.01 A increments
Data Interface	RS232, RS485
Driver Current	0.5 to 6 A/Phase
Input Voltage	5 to 12 V
Motion Precision & Smoothness	Speed Range: Depends upon selected resolution; amplifier is suitable for speeds up to 133 rps
Number of Inputs	15
Number of Outputs	7
Operating Temperature, Max	55 °C
Operating Temperature, Min	0 °C
Process Connection	N/A
Protection	Over voltage, under voltage, over-temp, external output shorts (phase-to-phase, phase-to-ground), internal amplifier shorts
Relative Humidity	90% non-condensing
Resolution	Software selectable from 200 to 51,200 steps/rev in increments of 1 step/rev
Status Control	false
Supply Voltage	94 to 35 Vac
See All Specs Show Less
