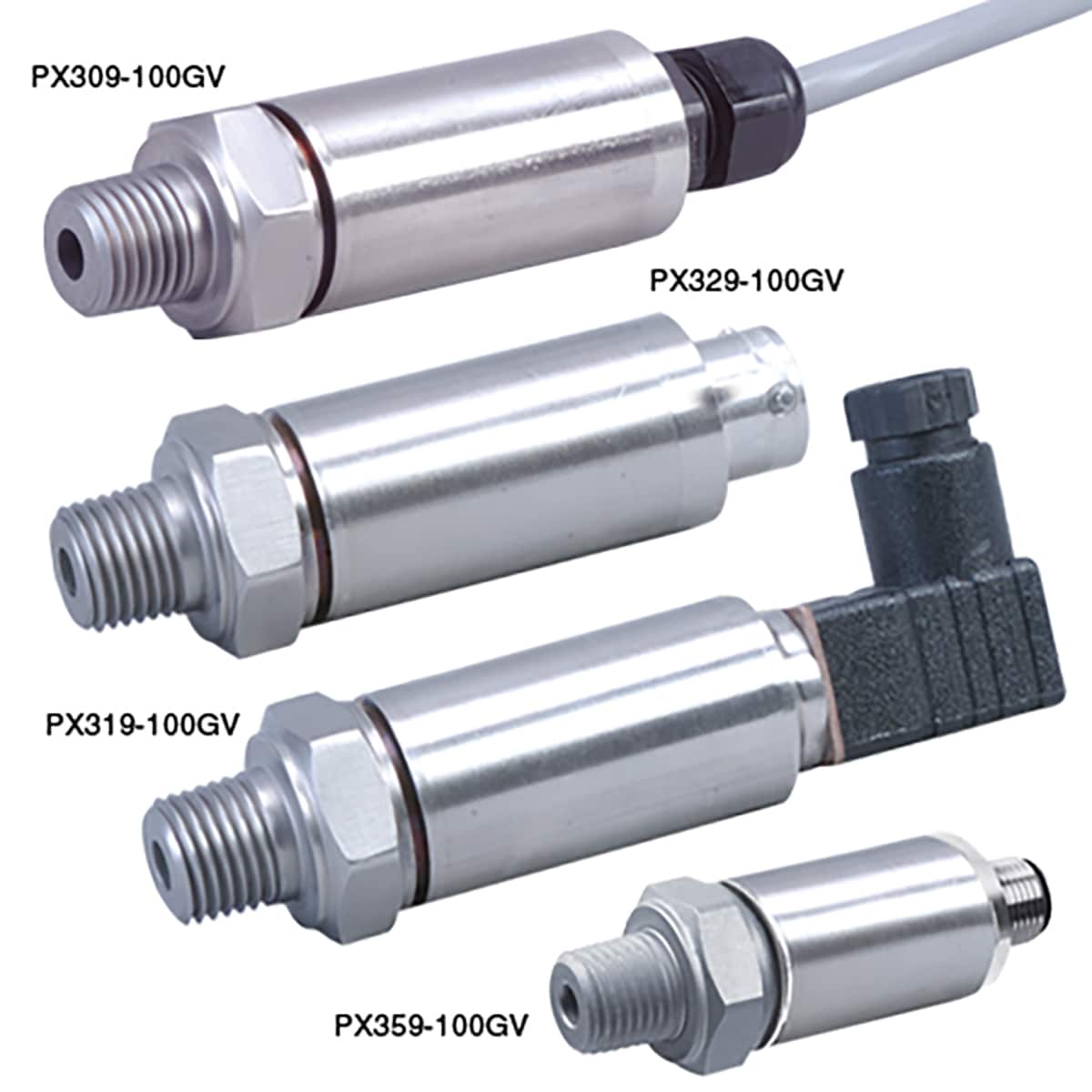

PX309-015G5V

0 to 15 psi, Gauge, 0 to 5 Vdc, Cable

Click and hold to zoom

Electrical Connection

Electrical Output

Measurement Pressure Type

Gauge Absolute Compound Gauge Vacuum

Measurement Pressure, Max

$426.53 / each

Item# PX309-015G5V

Added to Your Shopping Cart

In Stock

Lead Time (If not in stock): 5 Days

Brand
Accuracy	± 0.25 %
Accuracy Class	0.1% to 0.25%
Accuracy Detail	± 0.25% BSL, max (Combined Linearity, Hysteresis and Repeatability)
Additional Features 1	None
Bandwidth	DC to 1 kHz
Burst Pressure	4x Full Scale
Burst Pressure Note	-15 to 50 psig and 0 to 1000 psia: 4 times rated pressure or 25 psi whichever is greater, 100 to 10,000 psig: 5 times rated pressure
Electrical Connection	Cable
Electrical Output	0 to 5 V
Enclosure Material	316 Stainless Steel
Enclosure Ratings	IP65
GrossWeightValue	0.35
Insulation Resistance	1 MΩ @ 25 Vdc
Measurement Pressure Type	Gauge
Measurement Pressure, Max	15 psi
Measurement Pressure, Min	0 psi
Operating Temperature, Max	85 °C
Operating Temperature, Min	-40 °C
Output Signal	Voltage
Pressure Cycles	10 million, minimum
Pressure Note	Pressure Overload: -15 to 50 psig and 0 to 1000 psia: 3 times rated pressure or 20 psi whichever is greater, 100 to 10,000 psig: 2 times rated pressure
Process Connection Size	1/4 in
Process Connection Type	NPT Male
Response Time	<1 ms
Series ID	PX309
Shock	50 g, 11 ms half-sine
Shunt Calibration Value	In vertical direction with fitting down, compound ranges are calibrated for positive pressure output only
Stability	± 0.25%
Stability Note	1-Year Stability: <0.25% FS
Supply Voltage	9 to 30 Vdc
Vibration	± 20 g
Weight	154 g
Country of Origin	China
