102-WT-7810-C-60

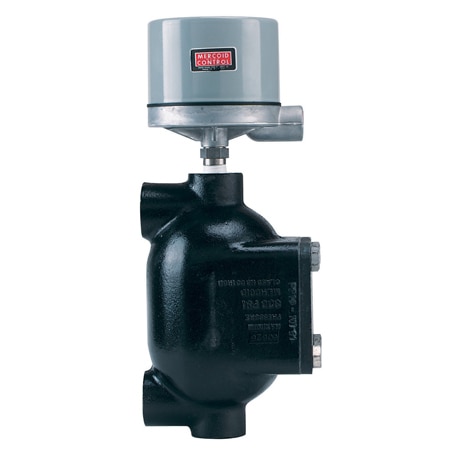

Flanged chamber type level control, SPDT snap switch.
Choose a Variant
Switch Type
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Cable Material | N/A |
| Compliance | UL |
| Electrical Connection | 3/4 in NPT female Conduit with Screw Terminal block |
| Enclosure Ratings | IP66, NEMA Type 4X |
| Material Construction Option | N/A |
| Materials, Wetted | 303 Stainless Steel, 304 Stainless Steel, 316 Stainless Steel, 430 Stainless Steel, Carbon Steel, Iron, Steel |
| Media Compatibility | Alcohols, Compatible Liquids, Oils, Water |
| Mounting Orientation | Vertical |
| Operating Temperature, Max | 212 °F |
| Pressure Type | Gauge |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Female |
| Process Temperature, Max | 425 °F |
| Proof Pressure | Up to 300 psi |
| Repeatability | ±1.4" |
| Set Point Adjustment | ± 1 in |
| Specific Gravity, Min | 0.6 |
| Switch Note | 12 A @ 120 Vac, 5 A @ 240 Vac, 0.5 A @ 125 Vdc resistive, 0.25 A @ 250 Vdc resistive |
| Switch Rating | 30 VA: 0.14 A @ 220 Vac |
| Switch Type | SPDT Snap |
| Weight | 35 lb |
| See All Specs | |
Drawings
