Series-ZV1
Electric Zone Valves for HVAC, 1/2"-1", 24/120 VAC, Easy Setup, Manual Override
Models In Stock
Series-ZV1
From
$
29.78
Models In Stock
Product Overview
- Cycle Time Opening time: 11 s; Closing time: 5 s
- Electrical Connection Pigtail Leads
- Enclosure Ratings General purpose
- Flow Characteristic Quick Opening
- Input Control Signal On/Off
- Materials Aluminum
- Materials, Wetted Brass, Buna-N (NBR), Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 104 °F
- Operating Temperature, Min 32 °F
- Power Consumption 6.5 W
- Pressure Limits Up to 300 psi
- Process Temperature, Max 201 °F
- Process Temperature, Min 32 °F
- Supply Power Type AC
- Wire Gauge 22 AWG

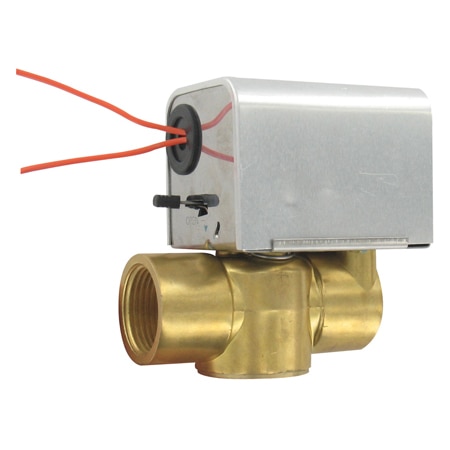

ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. Zone valves are typically used in conjunction with a thermostat to control room temperature. The ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1" sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
