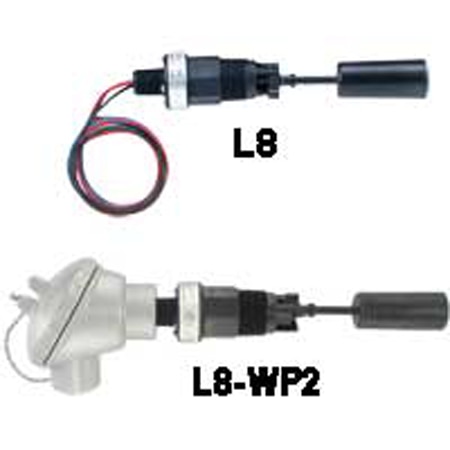

L8-WP
Liquid level switch with weatherproof enclosure (phenylpolioxide).
Choose a Variant
Material Construction Option
Added to Your Shopping Cart
Configuration complete.
Please add to cart to keep it or exit the configuration
Please add to cart to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Applications | Chemical Refineries, Chemicals |
| Cable Material | N/A |
| Compliance | CE, cURus |
| Electrical Connection | 1/2 in NPT male Conduit with Wire Leads |
| Enclosure Ratings | General purpose, Weatherproof |
| Material Construction Option | Weatherproof Enclosure |
| Materials, Wetted | 316 Stainless Steel, Ceramic, Inconel, PPS |
| Media Compatibility | Alcohols, Compatible Liquids, Oils, Water |
| Mounting Orientation | Horizontal with downward pointing index |
| Operating Temperature, Max | 212 °F |
| Pressure Type | Gauge |
| Process Connection Size | 1/8 in |
| Process Connection Type | NPT Male |
| Proof Pressure | Up to 150 psi |
| Specific Gravity, Min | 0.6 |
| Switch Note | 5 A @ 125/250 Vac, 5 A resistive, 3 A inductive @ 30 Vdc. MV option: 1 A @ 125 Vac, 1 A resistive, 0.5 A inductive @ 30 Vdc. |
| Switch Rating | 30 VA: 0.14 A @ 220 Vac |
| Switch Type | SPDT Snap |
| Weight | 5 oz |
| Wire Gauge | 18 AWG |
| See All Specs | |
