CASS-18U-12-DUAL

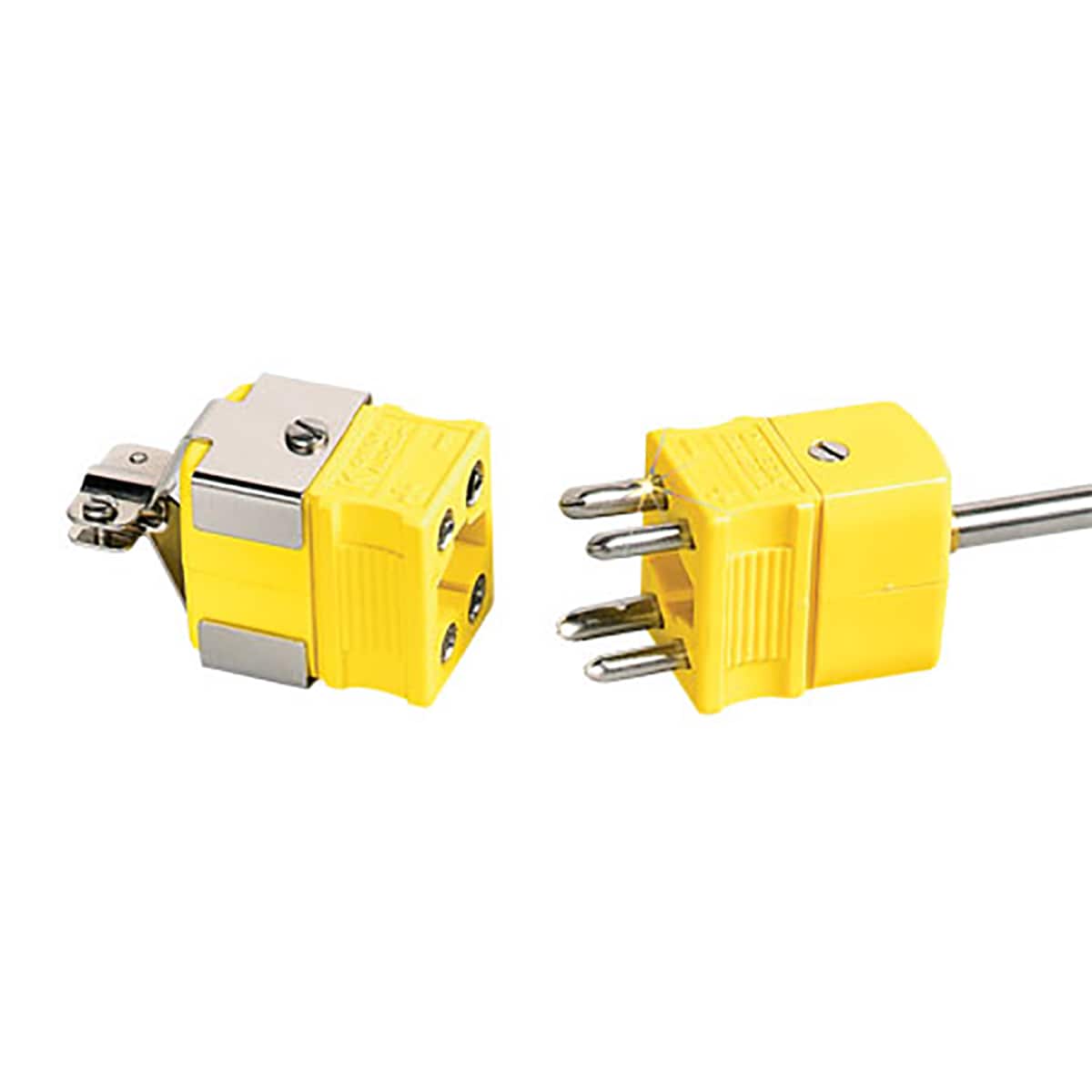

Dual Element Thermocouple probe with Standard Size Connector

4.7
(6)
Dual Element Thermocouple probe with Standard Size Connector
Click and hold to zoom
See all Models See all accessories

$159.53 / each

Item# CASS-18U-12-DUAL

In Stock

Lead Time (If not in stock): 3 weeks
+ Add to Project List
See Specs

Product Specs

<< See all Product Models
Brand
Alloy Material (+) Chromel
Alloy Material (-) Alumel
Cable Clamp PCLM-DTC
Color Code Standard ANSI
Commodity Code 9025.80.5050
Connector Temperature, Max 220 °C
Connector Temperature, Min 0 °C
DepthValue 5.9
ECCN EAR99
Electrical Connection Dual Standard Male Thermocouple Connector
GrossWeightValue 0.21
HeightUoM IN
HeightValue 1.9
Junction Type Ungrounded
Mating Connector Dual Standard Female Thermocouple Connector
NetWeightValue 0.21
OkForExport true
Probe Diameter 0.125 in
Probe Insulation None
Probe Length 12 in
Process Connection Size N/A
Process Temperature, Max 1070 °C
Process Temperature, Min 0 °C
RRS Code 1
RTD Type N/A
Sheath Material 304 Stainless Steel
Taxonomy Level 1 STT
Taxonomy Level 2 TD
Taxonomy Level 3 QP
Taxonomy Level 4 MO
Temperature Probe Style N/A
Temperature Sensor Type Thermocouple
Thermocouple Type K
WeightUoM LB
WidthValue 16.75
Country of Origin United States
See All Specs Show Less
Dual Element Thermocouple probe with Standard Size Connector CASS-18U-12-DUAL CASS-18U-12-DUAL
4.7
(6)
Rated 5 out of 5 by from Quick Delivery. Good Value for the Money Purchased this to replace a single element thermocouple. The unit met all my expectations
Date published: 2016-03-18
Rated 5 out of 5 by from Great quality! The Dual Element Thermocouple Probe with a standard size connector is a reliable and precise tool for temperature measurements. Its dual element design ensures fast response times and accurate readings, making it ideal for various industrial applications. The sturdy build and standard connector make it compatible with most thermocouple devices. Overall, it’s a high-quality, efficient solution for temperature monitoring.
Date published: 2025-03-17
Rated 5 out of 5 by from Dual Element Thermocouple probe works great Timely service and delivery, the probe and connector work exactly as intended.
Date published: 2025-02-21
Rated 3 out of 5 by from Reliable. Install and forget. These units are incredibly robust...and we have put that to the test!
Date published: 2023-08-25
Rated 5 out of 5 by from Dual element thermocouple The build quality and accuracy is exactly what I have come to expect from Omega's thermocouples. The dual elements is especially convenient for our application.
Date published: 2020-12-31
Rated 5 out of 5 by from Quality build! These thermocouples last a long time in our ovens.
Date published: 2019-03-18
