Series-DLD
Dual Channel Leak Detection Relay for Submersible Pumps – Monitors Seals
Product Overview
- Compliance cUR, UR
- Control Mode On/Off
- Isolation 2500 V
- LED Indicators Red LED Illuminates when Leak is Detected
- Materials Polycarbonate
- Mounting 8-pin octal
- Operating Temperature, Max 131 °F
- Operating Temperature, Min -4 °F
- Power Consumption 2 VA
- Response Time Energize: 6 ms, Release: 2.5 ms
- Storage Temperature, Max 185 °F
- Storage Temperature, Min -40 °F
- Supply Power Type AC
- Supply Voltage 120 Vac
- Switch Activation Falling
- Switch Note 5 A @ 120 VAC resistive, 345 VA inductive
- Switch Rating 5 A @ 120 Vac, 345 VA
- Switch Type (2) SPST NO
- Switching Voltage 9 Vdc
- Weight 8 oz

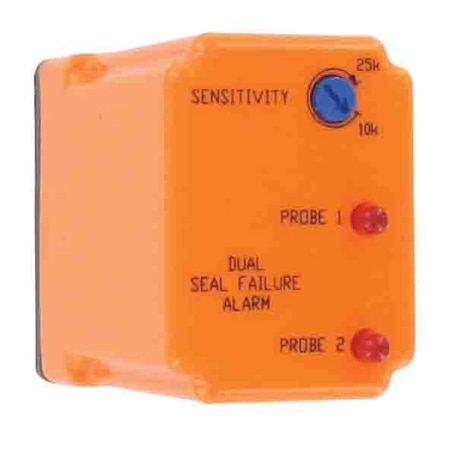

Series DLD Dual Channel Leak Detection Relay is used to monitor the shaft seals of two submersible pumps to detect a leak before pump failure. A leak is detected by sensing the status of a float or conductivity switch installed in the seal cavity. When this resistance drops below the set sensitivity, the output relay energizes and the corresponding LED indicator illuminates. The DLD offers normally open relay contacts to energize an alarm or de-energize the pump in the event of a leak. When the seal failure condition clears, the relay automatically resets.
