Series-820
DIN Rail Time Delay Relays, 10 Functions, 0.1s Adjustments, LED – Min. Order 10
Models In Stock
Series-820
From
$
168.95
Models In Stock
Product Overview
- Compliance CE, cUL, RoHS 2, UL
- Electrical Connection Screw Terminal
- Electrical Output N/A
- Input Control Signal N/A
- Materials Polycarbonate
- Mounting DIN Rail
- Operating and Load Voltage 12 to 240 Vac / Vdc
- Operating Temperature, Max 131 °F
- Operating Temperature, Min -4 °F
- Power Consumption 3 VA (AC) or 1.7 W (DC)
- Storage Temperature, Max 158 °F
- Storage Temperature, Min -22 °F
- Supply Current 15 A
- Switch Rating 15 A @ 240 Vac, 24 Vdc
- Timing Functions Functions available: A, B, C, D, E, F, G, H, I, J (10 for total);Time ranges: 0.1 sec to 10 days
- Weight 2.3 oz

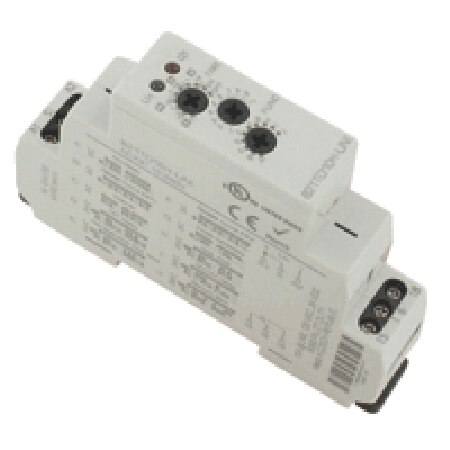

The Series 820 DIN Rail Mountable Time Delay Relays can be configured in accordance with 10 different timing functions. Bright red and green LED’s indicate whether the input has been triggered and if the output is active. For greater accuracy, there are 10 time scales and a fine adjustment potentiometer that allows adjustment down to 0.1 seconds. Integral mounting ears allow the Series 820 to mount directly to a DIN rail.
Note: All purchases must be 10 units or more.
