Model-CPS

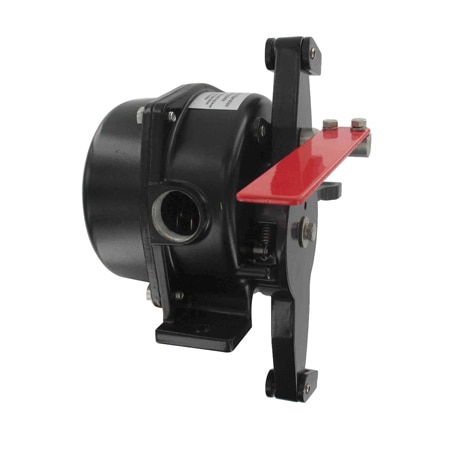

CPS Cable Pull Switch – Compact, bi-directional with manual reset & indicator
Models In Stock
- NEMA 6, die cast aluminum housing
- 2 SPDT switches
- Highly visible red flag indicating switch status
- Simple installation and wiring
Model-CPS
From
$
421.60
Models In Stock

Product Overview
- Activation Angles 30 degrees
- Activation Force 11 ± 2.25 lb
- Applications Industrial and Manufacturing, Material Handling
- Control Type Manual Reset
- Electrical Connection 3/4 in NPT female Conduit with Screw Terminal block
- Enclosure Ratings IP67, NEMA Type 6
- Materials Aluminum
- Operating Temperature, Max 140 °F
- Operating Temperature, Min -4 °F
- Switch Rating 10 A @ 125/250 VAC, 1/2 A @ 125 VDC
- Weight 6.4 lb
The Model CPS Cable Pull Switch is designed to provide a switching system to isolate the power to the conveyor system or other similar process equipment in event of a shutdown condition. A steel wire is placed along the side of the conveyor and attached to the cable pull switch. When the cable is pulled at any point along the conveyor it will trip the cable pull switch causing the conveyor to shut down. To restart the conveyor the CPS must be manually reset. The CPS has a universal design for bi-directional activation and utilizes a highly visible red flag to indicate the switch status. The compact design makes it ideal for easy installation.
Product Applications
- Conventional belt conveyors
- Ship loading/unloading systems
- Stacker/reclaim conveyors
- Apron feeder conveyors
- Tripper or shuttle conveyors
- Bucket elevators
- Horizontal feed systems
