KTO-KTS-Series
Compact Thermostat with DIN Rail Mount
Models In Stock
- Compact Design
- Wide Adjustment Range
- Available with °C or °F
- Color Coded Temperature Dials
KTO-KTS-Series
From
$
25.72
Models In Stock
Product Overview
- Status Control false
- Approvals CE
- Contact Type Snap-Action Contact
- Current Rating 15 A
- Current Rating Note 15 (2) A @ 120 VAC 10 (2) A @ 250 VAC DC 30W
- Electrical Connection Note 2-Pole terminal,clamping torque 0.5Nm max.:rigid wire 2.5mm² stranded wire (with wire end ferrule) 1.5mm²
- EMC acc. to EN 55014-1-2, EN 61000-3-2, EN 61 000-3-3;EN60715 or for exit filterEF 118 Series
- Enclosure Ratings IP20
- Fitting position Variable
- Form factor Clip for 35 mm DIN Rail
- Height 60 mm
- Length 43 mm
- Number of Circuits N/A
- Operating Temperature, Max 80 °C
- Operating Temperature, Min -20 °C
- Service Life >100,00 cycles
- Storage Temperature, Max 80 °C
- Storage Temperature, Min -45 °C
- Supply Voltage 120 to 250 Vac
- Switching Capacity, Max 15(2) A 120Vac, 10(2) A 250 Vac, 30 W dc
- Temperature Difference Note 7K (± 4K)
- Temperature Range Adjustable
- Width 33 mm

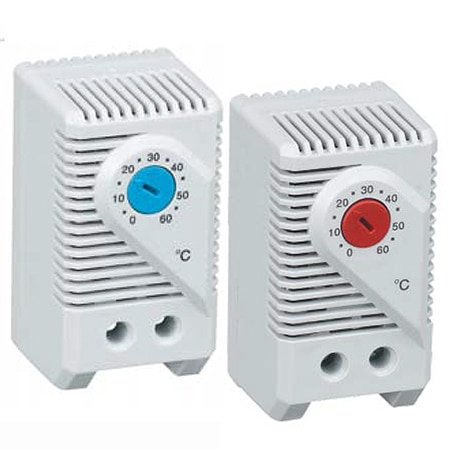

Thermostat "NC" (Normally Closed): Thermostat opens at temperature rise. Comes with a RED temperature dial.
Thermostat "NO" (Normally Open): Thermostat closes at temperature rise. Comes with a BLUE temperature dial.
SPECIFICATIONS
Sensor Element:Â Thermostatic bi-metal
Switching Difference (Hysteresis): 7°K ±4K tolerance
Service Life:Â 100,000 cycles
Switching Capacity (Max Load):Â 10 (2) A @ 250 VAC, 15 (2) A @120 VAC, 30W DC
Connections:Â 2-pole terminal for AWG 14 max [2.5 mm2Â (0.10 in2)]
Mounting:Â Clip for 35 mm (1.4") DIN rail (EN 60715)
Dimensions:Â 60 H x 33 W x 43 mm D (2.4 x 1.3 x 1.7")
Housing:Â Plastic, UL94V-0
Weight:Â 40 g (1.4 oz)
Operating Temperature: -20 to 80°C (-4 to 176 F)
Storage Temperature: -45 to 80°C (-49 to 176°F)
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
Thermostat "NO" (Normally Open): Thermostat closes at temperature rise. Comes with a BLUE temperature dial.
SPECIFICATIONS
Sensor Element:Â Thermostatic bi-metal
Switching Difference (Hysteresis): 7°K ±4K tolerance
Service Life:Â 100,000 cycles
Switching Capacity (Max Load):Â 10 (2) A @ 250 VAC, 15 (2) A @120 VAC, 30W DC
Connections:Â 2-pole terminal for AWG 14 max [2.5 mm2Â (0.10 in2)]
Mounting:Â Clip for 35 mm (1.4") DIN rail (EN 60715)
Dimensions:Â 60 H x 33 W x 43 mm D (2.4 x 1.3 x 1.7")
Housing:Â Plastic, UL94V-0
Weight:Â 40 g (1.4 oz)
Operating Temperature: -20 to 80°C (-4 to 176 F)
Storage Temperature: -45 to 80°C (-49 to 176°F)
Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.
