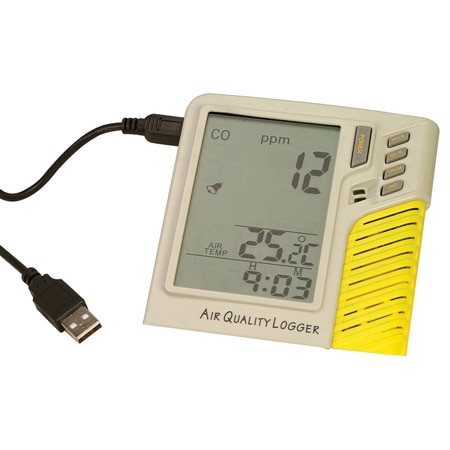

AQM-103-CO-Monitor
Carbon Monoxide Monitor and Data Logger
Models In Stock
- Large LCD Displays CO Level, Temperature, Date and Time
- Programmable High Alarm
- Audible/Visible LED Warning for High CO Concentration
AQM-103-CO-Monitor
From
$
385.42
Models In Stock
Product Overview
- Status Control false
- Accuracy ± 5 % of rdg or ± 10 ppm
- Air Quality Measurement 0 to 999 ppm
- Battery Size and Type Alkaline AAA
- Data Interface USB
- Display Type LCD
- Height 110 mm
- Length 28 mm
- Memory 32,000 readings
- Number of Batteries 4
- Process Temperature, Max 50 °C
- Process Temperature, Min 0 °C
- Resolution 1 ppm
- Storage Temperature, Max 70 °C
- Storage Temperature, Min -40 °C
- Temperature Accuracy ± 0.6 °C
- Temperature Resolution 0.1 °C
- Weight 165 g
- Width 108 mm
The AQM-103 is designed to measure CO concentration and air temperature with visible and audible alarms. This CO monitor is an ideal instrument for indoor air quality (IAQ) diagnosis and HVAC system performance verification.
CO is a common byproduct of the combustion of fossil fuels. Carbon monoxide or CO is a colorless, odorless and tasteless gas. Due to this fact, it is very hard to detect the presence of CO in your environment. It is, however, imperative that the CO levels are carefully monitored. Even at relatively low levels, CO is poisonous because it rapidly accumulates in the blood thereby depleting its ability to carry oxygen. Extreme cases of CO poisoning result in death.
For healthy adults CO becomes toxic when it reaches a level higher than 35 ppm (parts per million) with continuous exposure over an eight hour period.
SPECIFICATIONS
Carbon Monoxide
Measurement Range: 0 to 999 ppm
Accuracy: ±5% of rdg or ±10 ppm whichever is greater
Resolution: 1 ppm
Temperature
Range: 0 to 50°C (32 to 122°F)
Accuracy: ±0.6°C (1.2°F)
Resolution: 0.1°C (0.1°F)
Memory Capacity: 32000 readings
Storage Temperature: -40 to 70°C (-40 to 158°F)
Interface: USB
Dimensions: 110 H x 108 W x 28 mm D (4.33 x 4.25 x 1.10')
Weight: 165 g (5.8 oz)
CO is a common byproduct of the combustion of fossil fuels. Carbon monoxide or CO is a colorless, odorless and tasteless gas. Due to this fact, it is very hard to detect the presence of CO in your environment. It is, however, imperative that the CO levels are carefully monitored. Even at relatively low levels, CO is poisonous because it rapidly accumulates in the blood thereby depleting its ability to carry oxygen. Extreme cases of CO poisoning result in death.
For healthy adults CO becomes toxic when it reaches a level higher than 35 ppm (parts per million) with continuous exposure over an eight hour period.
SPECIFICATIONS
Carbon Monoxide
Measurement Range: 0 to 999 ppm
Accuracy: ±5% of rdg or ±10 ppm whichever is greater
Resolution: 1 ppm
Temperature
Range: 0 to 50°C (32 to 122°F)
Accuracy: ±0.6°C (1.2°F)
Resolution: 0.1°C (0.1°F)
Memory Capacity: 32000 readings
Storage Temperature: -40 to 70°C (-40 to 158°F)
Interface: USB
Dimensions: 110 H x 108 W x 28 mm D (4.33 x 4.25 x 1.10')
Weight: 165 g (5.8 oz)
PDFs & Manuals
Software & Drivers
Accessories
Show Ratings & Reviews
Rated 2 out of
5
by
jimbo from
It's OK.
As delivered it said even fresh outdoor air was @ 25ppm CO. After re-zero-ing, it now says indoor air is between 0 and 15ppm CO (constantly wandering in this range, even if our furnace and gas stove are completely shut down). It is not quite as accurate as I was hoping for.
Date published: 2017-03-06
