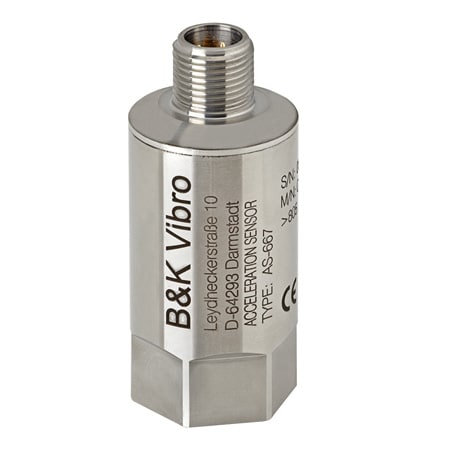

AS-667-Series

B&K Vibro Low Frequency Accelerometer

0.0

(0)

Hermetically sealed
Rugged (IP66/ IP67) and corrosion resistant design
Measures very low frequencies down to 0.5 Hz
Industry proven M12 connector

See Product Overview

AS-667-Series

From ^$ 385.79

Shop Models

1 Variations available

See all series options below

Data Sheet

Product Overview

Status Control false
Additional Features 1 Piezoelectric Principle, Compression type
Applications Assembly Line, Casing Vibration, Compressor Control, Power Generation, Power Plants & Boilers, Pump Control, Shaft Vibrations
Connector Style Top
Electrical Output 27 V
Enclosure Material Stainless Steel
Enclosure Ratings IP66, IP67
Ground Isolated Case
Linearity Error < 1 %
Measuring Range ±60 g
Mounting M8 Tapped Hole
Mounting Note 3,5 Nm, width across flats: 22 mm
Mounting Torque 3.5 Nm
Natural frequency 30 kHz
Operating Temperature, Max 125 °C
Operating Temperature, Min -55 °C
Output Detail Voltage across entire temperature range: 12.4 Vdc to 13.4 Vdc
Output Resistance 100 Ω
Overload Capacity 5000 g peak
Sensitivity Note Cross Sensitivity: 5%
Sensor Type Compression Type
Storage Temperature, Max 70 °C
Storage Temperature, Min -20 °C
Supply Current 2 mA to 10 mA
Weight 120 g

The AS-667 is designed for industrial vibration measurements and particularly suitable for general measurements on rotating machinery. It covers a broad application range like monitoring of turbines compressors pumps generators etc. Its robust and high-quality design make this sensor the perfect match for demanding applications.

This acceleration sensor operates according to the piezo-electric principle. A piezo-element and an internal sensor mass form a spring-mass system in the sensor. If this system is subjected to vibrations the mass produces an alternating force on the piezo element. As a result of the piezo effect an electrical charge is produced that is proportional to vibration acceleration. An integrated amplifier converts this charge signal into a usable voltage signal.

Brüel & Kjaer Vibro Accelerometer Selection Table

Model	sensor technology	Sensitivity	Sensitivity accuracy	Frequency range [Hz]	Resonant frequency	measuring range	connector type	connector style	cable connection
AS-667	compression type	100 mV/g	± 10%	0.5 Hz to 13 kHz: (±3 dB)	typ 30 kHz	60 g	M12 - 4 pole	top	mountable
AS-668	compression type	100 mV/g	± 10%	0.5 Hz to 13 kHz: (±3 dB)	typ 30 kHz	60 g	M12 - 4 pole	lateral	mountable
AS-063	compression type	100 mV/g	± 5%	1.5 Hz to 13 kHz (± 3 dB)	35kHz ± 3 kHz	80 g	MIL-C-5015	top	mountable
AS-062	compression type	100 mV/g	± 5%	1.5 Hz to 13 kHz (± 3 dB)	> 20 kHz	80 g	n.a.	lateral	integrated
AS-070/001	shear type (ring)	100 mV/g	± 20%	0.32 Hz to 10 kHz (± 3 dB)	> 25 kHz	50 g	n.a.	lateral	integrated
