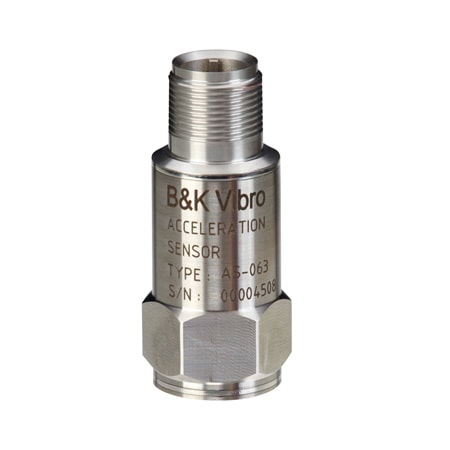

AS-063-Series
B&K Vibro Accelerometer for Hazardous Locations
- Hermetically sealed
- Rugged (IP66/ IP67) and corrosion resistant design
- Field proven MIL-C-5015 connector
- Class 1 Division 1 sensors for hazardous locations
AS-063-Series
From
$
414.83
Product Overview
- Status Control false
- Additional Features 1 Mountable cable
- Applications Assembly Line, Power Generation, Power Plants & Boilers
- Approvals Marking: II 1 G Ex ia IIC T6 Ga or II 2 D Ex ia IIIC T145 °C Db
- Connector Style Top
- Differential Voltage, Max +12.5 V, ± 1.5 V
- EMC Standard EN 61326-1
- Enclosure Material Stainless Steel
- Enclosure Ratings IP66, IP77
- Insulation Resistance ≥ 20 MΩ
- Measuring Range ±80 g
- Mounting M8 x 14 or M8 x 1/4“ 28 UNF
- Mounting Note Threaded stud M8 x 14 / Threaded stud M8 / 1/4“ 28 UNF
- Mounting Torque 3.5 Nm
- Natural frequency 35kHz ± 3 kHz
- Operating Temperature, Max 125 °C
- Operating Temperature, Min -55 °C
- Output Resistance ≤ 300 Ω
- Overload Capacity 5000 g peak
- Polarity Positive
- Sensitivity Note Transverse Sensitivity Max: ≤ 8 to 10 %, Magnetic Field Sensitivity: <80 Hz: 0,001 g/mT ; <1 kHz: 0,014 g/mT, Strain Sensitivity: < 0.002 g/( µm/m ), Sensitivity Accuracy: ± 5 %
- Sensor Type Compression Type
- Storage Temperature, Max 70 °C
- Storage Temperature, Min -20 °C
- Supply Current 4 mA (2 mA to 10 mA)
- Supply Power Note + 24 V (+ 18 V to + 30 V) DC polarised
- Supply Voltage 24 Vdc
- Weight 130 g
The AS-063 is designed for industrial vibration measurements and particularly suitable for general measurements on rotating machinery. It covers a broad application range like monitoring of turbines compressors pumps generators etc. Its robust and high-quality design make this sensor the perfect match for demanding applications. These are Class 1 Division 1 sensors for hazardous locations.
This acceleration sensor operates according to the piezo-electric principle. A piezo-element and an internal sensor mass form a spring-mass system in the sensor.
If this system is subjected to vibrations the mass produces an alternating force on the piezo element. As a result of the piezo effect an electrical charge is produced that is proportional to vibration acceleration. An integrated amplifier converts this charge signal into a usable voltage signal.
Brüel & Kjaer Vibro Accelerometer Selection Table
| Model | picture | sensor | Sensitivity | Sensitivity | Frequency | Resonant | measuring | connector | connector | cable |
|---|---|---|---|---|---|---|---|---|---|---|
AS-667 |
| compression type | 100 mV/g | ± 10% | 0.5 Hz to 13 kHz: (±3 dB) | typ 30 kHz | 60 g | M12 - 4 pole | top | mountable |
AS-668 |
| compression type | 100 mV/g | ± 10% | 0.5 Hz to 13 kHz: (±3 dB) | typ 30 kHz | 60 g | M12 - 4 pole | lateral | mountable |
AS-063 |
| compression type | 100 mV/g | ± 5% | 1.5 Hz to 13 kHz (± 3 dB) | 35kHz ± 3 kHz | 80 g | MIL-C-5015 | top | mountable |
AS-062 |
| compression type | 100 mV/g | ± 5% | 1.5 Hz to 13 kHz (± 3 dB) | > 20 kHz | 80 g | n.a. | lateral | integrated |
AS-070/001 |
| shear type (ring) | 100 mV/g | ± 20% | 0.32 Hz to 10 kHz (± 3 dB) | > 25 kHz | 50 g | n.a. | lateral | integrated |
