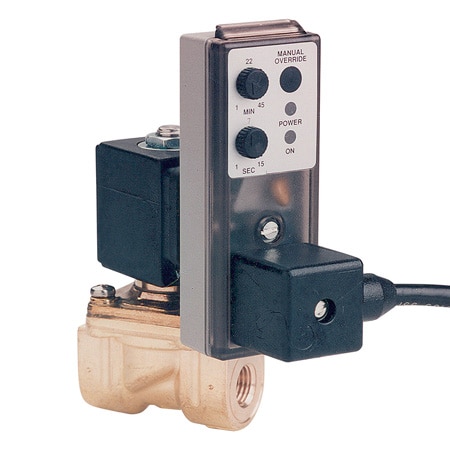

DVT-Series
Adjustable timing Electronic Drain Valve
- 100% Continuous Duty Cycle
- 120 Vac Standard (220 Vac and DC coils are optional)
- All Coils are CE
Product Overview
- Status Control false
- Duty Cycle 100%
- Enclosure Material Black Polyester
- Materials, Wetted Brass, Copper, FKM, Stainless Steel
- Media Compatibility Gases, Liquids
- Power Consumption 8 W
- Process Connection Type NPT Female
- Process Temperature, Max 54 °C
- Process Temperature, Min 1 °C
- Supply Voltage 115 Vac
- Valve Closed Time Adjustable 1 to 45 minutes
- Valve Open Time Adjustable 1 to 15 seconds
- Valve Position Normally Closed
- Voltage Tolerance ±10%
SPECIFICATIONS
Mounting Position: Any (preferably with solenoid system upright)
ON Time: Adjustable 1 to 15 sec
OFF Time: Adjustable 1 to 45 min
Power: 115 Vac, 60 Hz
Voltage Tolerance: ±10%
Min/Max Temperature: 1 to 54°C (35 to 130°F)
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F): SV8COIL-115 AC, SV8COIL-220 AC
Black Epoxy Resin (Class H): All 14 Watt coils
Valve Materials of Construction
Body: Brass
Armature Tube: Stainless Steel 300
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Brass
Mounting Position: Any (preferably with solenoid system upright)
ON Time: Adjustable 1 to 15 sec
OFF Time: Adjustable 1 to 45 min
Power: 115 Vac, 60 Hz
Voltage Tolerance: ±10%
Min/Max Temperature: 1 to 54°C (35 to 130°F)
Duty Cycle: Continuous (100%)
Coil Molding Material:
Black Polyester (Class F): SV8COIL-115 AC, SV8COIL-220 AC
Black Epoxy Resin (Class H): All 14 Watt coils
Valve Materials of Construction
Body: Brass
Armature Tube: Stainless Steel 300
Fixed Core: Stainless Steel 400
Plunger: Stainless Steel 400
Spring: Stainless Steel 300
Shading Ring: Copper
Orifice: Brass
