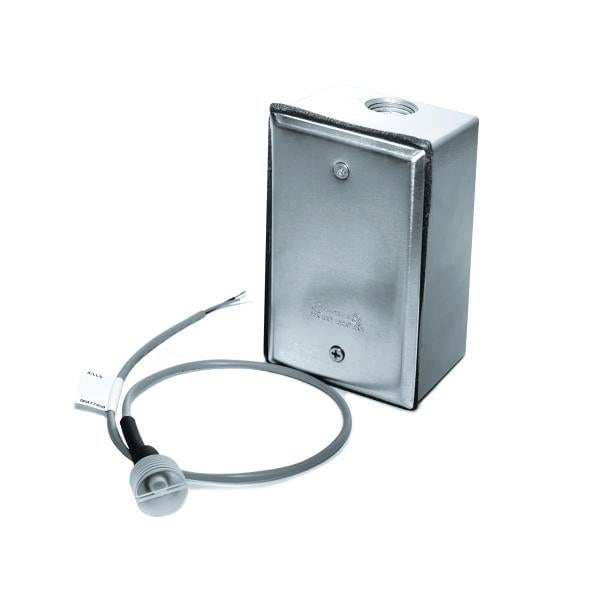

ACI A/LLS-T Light Level Transmitter Series for Indoor and Outdoor Lighting Control
Models In Stock
- Non-linear 4-20 mA output signal
- Calibrated from darkness to bright light conditions
- Suitable for indoor and outdoor lighting control
- Available for parking lot and indoor applications
Light-Level-Transmitter
From
$
191.00
Models In Stock
Product Overview
- Cable Diameter 0.16 in
- Cable Material Tin plated Copper
- Construction Type Light Level Sensor with Transmitter and Bell Box
- Current Output Range 4 to 20 mA
- Electrical Connection Screw Terminal
- Height 2.25 in
- Housing Material Acrylic / Polycarbonate
- Impedance Input 150 kΩ
- Insulation PVC
- Lead Length 18 in
- Length 4.58 in
- Load Resistance 500 Ω max
- Nominal Resistance Note Resistance @ 10 Lux (@25ºC): Typical: 24 kΩ
- Number of Wires 3
- Operating Humidity 0 to 95% RH, non-condensing
- Operating Temperature, Max 70 °C
- Operating Temperature, Min -40 °C
- Operating Temperature Note Transmitter Operating Temperature: 1.5 to 55 ºC, Transmitter Operating Relative Humidity: 5 to 95 %, non-condensing
- Power Dissipation 80 mW
- Process Connection Size 1/2 in
- Process Connection Type NPT Male
- Response Time Note Sensor Response Time @ 1 Foot-Candles: Rise (1-1/e): 78mS and Fall (1/e): 8mS; Sensor Response Time @ Dark: 5 seconds
- Series ID Light-Level-Transmitter
- Storage Temperature, Max 71 °C
- Storage Temperature, Min -40 °C
- Supply Voltage 24 to 35 Vdc
- Tightening Torque 0.5 Nm (Minimum); 0.6 Nm (Maximum)
- Voltage, Max 100 Vpk
- Weight 0.85 lb
- Width 2.82 in
- Wire Gauge 22 AWG
ACI A/LLS-T Light Level Transmitters provide ambient light measurement with a non-linear 4-20 mA output signal. Ideal for indoor and outdoor lighting control applications, they support automated operation based on available light levels and are available for both indoor and parking lot applications.
