BL-LLC300D3

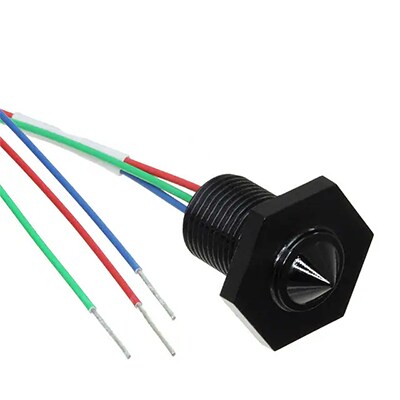

Liquid Level Sensor, M12, StdTemp, High in Air

(0)
Liquid Level Sensor, M12, StdTemp, High in Air
Click and hold to zoom
Liquid Level Sensor, M12, StdTemp, High in Air
Click and hold to zoom
Liquid Level Sensor, M12, StdTemp, High in Air
Click and hold to zoom
Liquid Level Sensor, M12, StdTemp, High in Air
Click and hold to zoom
See all Models See all accessories

$30.00 / each

Item# BL-LLC300D3

In Stock

Lead Time (If not in stock): 9 weeks
+ Add to Project List
See Specs

Product Specs

<< See all Product Models
Brand SST
Electrical Connection Pigtail Leads
Form factor Type 3
Housing Material Polysulfone
Logic High in air
Measurement Pressure Type Absolute
Measurement Pressure, Max 7 bar
Mounting Internal
Operating Temperature, Max 80 °C
Operating Temperature, Min -25 °C
Output Type (A) Push-Pull
Process Connection Size 12 mm
Process Connection Type Metric Male
Series ID Optomax-Digital
Storage Temperature, Max 85 °C
Storage Temperature, Min -30 °C
Supply Voltage 4.5 to 15.4 Vdc
Wire Gauge 24 AWG
Country of Origin United Kingdom
