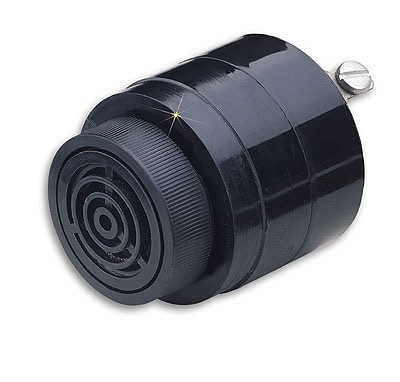

70A series Low Cost Audible Alarm Annunciators (buzzer)
Models In Stock
- Loud Tone -95 dB @ 2900 Hz
- Solid State Reliability, No Arcing or Mechanical Wear
- Easy to Install
- Very Low Cost
70A-Srs-Audible-Buzzers
From
$
54.02
Models In Stock
Product Overview
- Status Control false
- Operating Temperature, Max 65 °C
- Operating Temperature, Min -30 °C
- Operational Life 100 hours continuous operation at 65°C with maximum rated voltage applied; Intermitten: A duty cycle of 1 minute on, 5 minutes off, a minimum of 5000 times at room temperature with maximum rated voltage applied
- Relative Humidity 95% relative humidity at 40°C continuously for 100 hours
- Relative Humidity Note Series 70A temperature alarms will operate after having been subjected to 95% relative humidity at 40°C continuously for 100 hours; after removal from high humidity, the unit should be allowed to dry for a minimum of 4 hours at room temperature before operation
- Storage Temperature, Max 85 °C
- Storage Temperature, Min -40 °C
- Supply Power Note Surge Voltage: 20% over maximum rated voltage applied for <1 minute
- Working Life 5 years under normal operating conditions
OMEGAâ„¢ Model 70A Temperature Alarms are the latest development in solid state sound production. When power is applied, a piezoelectric transducer operates as a solid state oscillator resulting in a loud, audible alarm tone.
OMEGAâ„¢ Temperature Alarms are designed to give years of trouble-free service. There is no arcing or mechanical wear, and they are rugged and easy to install. Only a 1 1/8" diameter hole is required for mounting by removing the front plastic nut, inserting unit and rethreading. Units are easy to operate. Simply connect to a temperature controller and 120 volt ac power supply.
Humidity
Model 70A Temperature Alarms will operate after having been subjected to 95% relative humidity at 40°C continuously for 100 hours. After removal from high humidity, the unit should be allowed to dry for a minimum of four hours at room temperature before operation.
OMEGAâ„¢ Temperature Alarms are designed to give years of trouble-free service. There is no arcing or mechanical wear, and they are rugged and easy to install. Only a 1 1/8" diameter hole is required for mounting by removing the front plastic nut, inserting unit and rethreading. Units are easy to operate. Simply connect to a temperature controller and 120 volt ac power supply.
Humidity
Model 70A Temperature Alarms will operate after having been subjected to 95% relative humidity at 40°C continuously for 100 hours. After removal from high humidity, the unit should be allowed to dry for a minimum of four hours at room temperature before operation.
