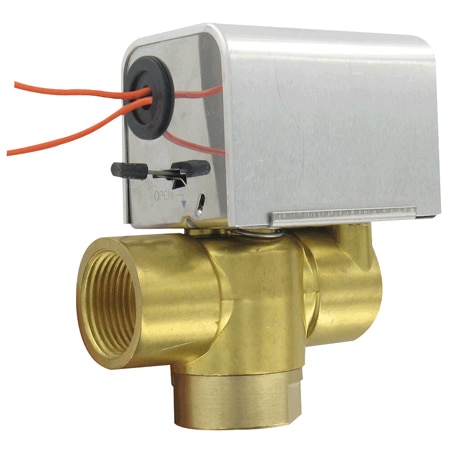

Series-3ZV1
3-Way Electric Zone Valve for HVAC – 1/2 to 1 in, 24/120 VAC, Easy Install
Product Overview
- Cycle Time Opening time: 11 s; Closing time: 5 s
- Electrical Connection Pigtail Leads
- Enclosure Ratings General purpose
- Flow Characteristic Quick Opening
- Input Control Signal On/Off
- Materials Aluminum
- Materials, Wetted Brass, Buna-N (NBR), Stainless Steel
- Media Compatibility Alcohols, Argon, Compatible Gases, Compatible Liquids, Nitrogen, Oils, Water
- Operating Temperature, Max 104 °F
- Operating Temperature, Min 32 °F
- Power Consumption 6.5 W
- Pressure Limits Up to 300 psi
- Process Temperature, Max 201 °F
- Process Temperature, Min 32 °F
- Supply Power Type AC
- Valve Type 3-way
- Wire Gauge 22 AWG
3ZV1 Series Zone Valves are ideal for flow control in hot and cold water HVAC systems. The 3ZV1 is electrically driven to open and spring to close. Units are available in 1/2", 3/4", and 1"; sizes with 24 or 120 VAC power supply. Easy to install these units are direct replacements for competitor units. Manual override lever is easily accessible externally. Consult factory for 220 VAC power supply, optional auxiliary switches, and BSP or sweat connections.
