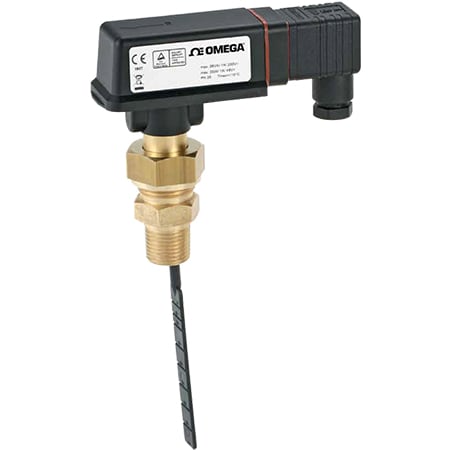

FSW301
Flow Switches
Added to Your Shopping Basket
Configuration complete.
Please add to basket to keep it or exit the configuration
Please add to basket to keep it or exit the configuration
Failed to Save Configurations, Click on Configure Button Start Again
Product Specs
<< See all Product Models| Brand |
 |
| Electrical Connection | DIN 43650 A (solenoid valve) |
| Electrical Connection Note | Plug Connector: DIN 43650 form A/ISO 4400 cable socket with terminal screws, suitable for outer cable diameter 4.57 to 6.85 mm (0.18 to 0.27”) |
| Enclosure Ratings | IP65 |
| GrossWeightValue | 0.81 |
| Height | 3.5 in |
| Length | 4.5 in |
| Linear Flow Rate, Max | 0 ft/s |
| Linear Flow Rate, Min | 0 ft/s |
| Material Construction Option | N/A |
| Materials | Brass, Polypropylene, Stainless Steel |
| Media Compatibility | Liquids |
| Operating Pressure, Max | 365 psi |
| Operating Temperature, Max | 80 °C |
| Operating Temperature, Min | 0 °C |
| Pipe Size, Max | 0 in |
| Pipe Size, Min | 0 in |
| Process Connection Size | 1/2 in |
| Process Connection Type | NPT Male |
| Process Temperature, Max | 110 °C |
| Process Temperature, Min | 0 °C |
| Series ID | FSW300-Series |
| Set Point Tolerance | ±15% |
| Switch Rating | 26 VA |
| Switch Rating Note | 26 VA,20 W, 1A, 230 Vac/48 Vdc, |
| Switch Type | SPST |
| Volumetric Flow Rate, Max | 4.7 GPM |
| Volumetric Flow Rate, Min | 4 GPM |
| Width | 1.5 in |
| Country of Origin | Germany |
| See All Specs | |
