Series-490A

Supported Applications

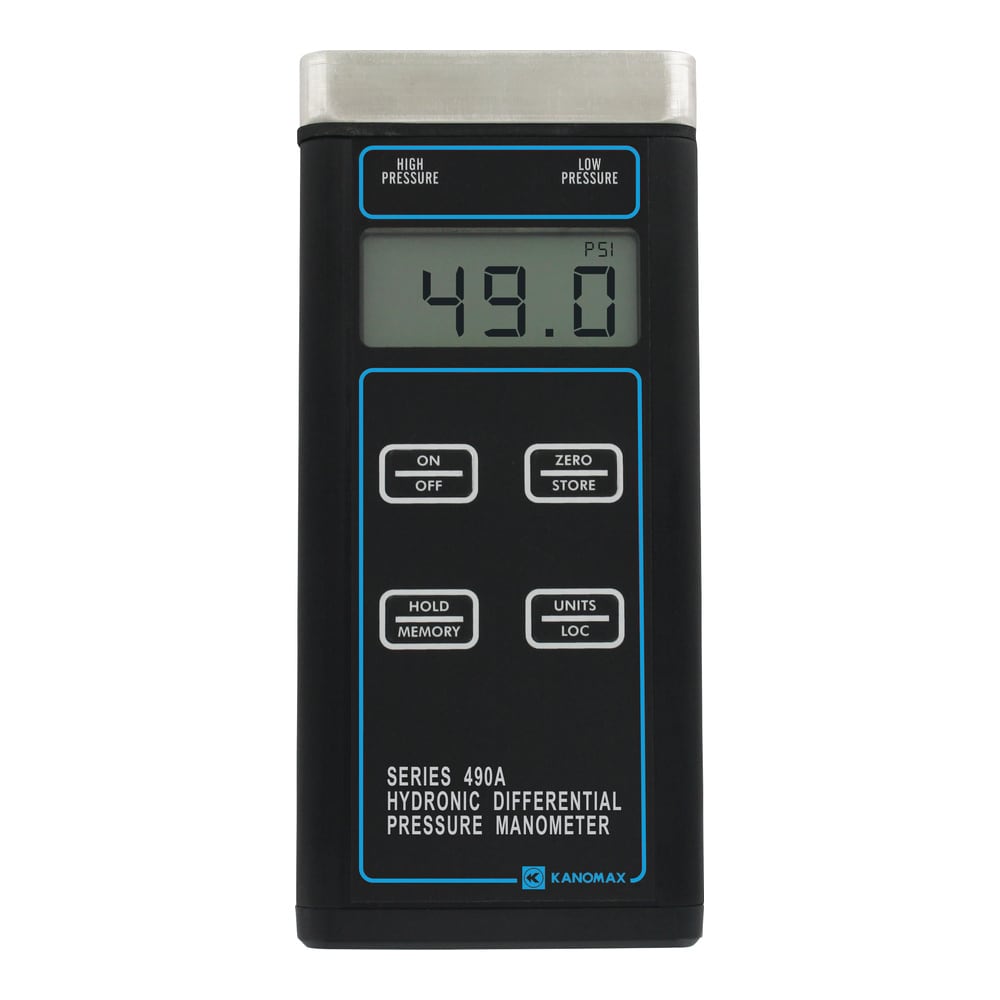

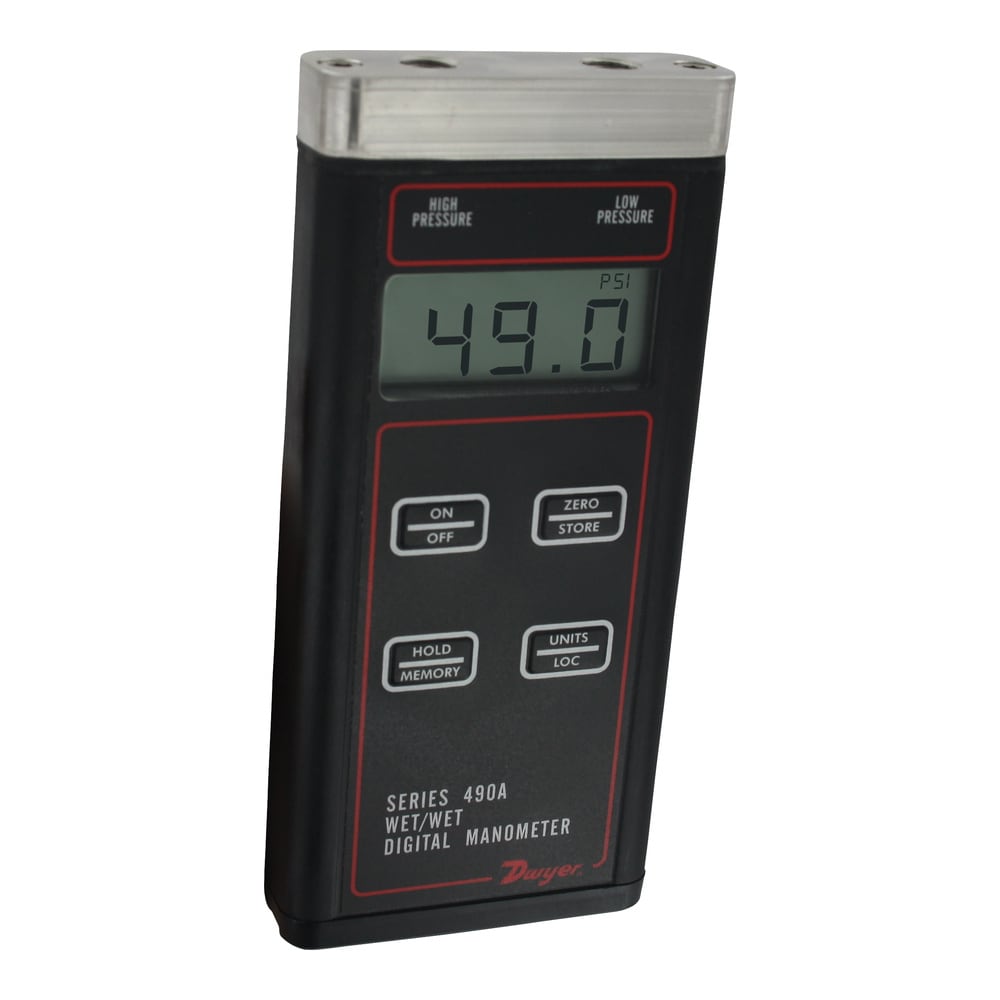

The Series 490A is a versatile, hand-held, battery-operated Hydronic Differential Pressure Manometer for positive or positive differential pressure measurement. It can tolerate most liquid media compatible with 316LSS, making it well suited to balancing, measuring and pressure testing hydronic systems. A memory function stores up to 40 readings for later recall, and a backlight provides auxiliary lighting for hard-to-see locations.

• Hydronic system balancing and pressure testing
• Positive and positive-differential pressure measurement of compatible gases and liquids
• Field readings in multiple engineering units including psi, in w.c., in Hg, mm Hg, kPa, mbar, bar and oz/in²

The manometer is CE compliant and reads out on a 0.42" (10.7 mm) 4-digit LCD. Do not exceed the maximum rated pressure of the manometer, as doing so will cause permanent damage to the sensor, may rupture the housing, and/or cause personal injury.

Operating Conditions & Performance

Accuracy is ±0.5% FS from 60 to 78°F (15.6 to 25.6°C) and ±1.5% FS from 32 to 60°F and 78 to 104°F. Pressure hysteresis is ±0.1% FS.

• Process temperature: -20 to 180°F (-29 to 82°C).
• Ambient/electronic temperature: 0 to 140°F (-17.8 to 60°C).
• Storage temperature: -4 to 176°F (-20 to 80°C).

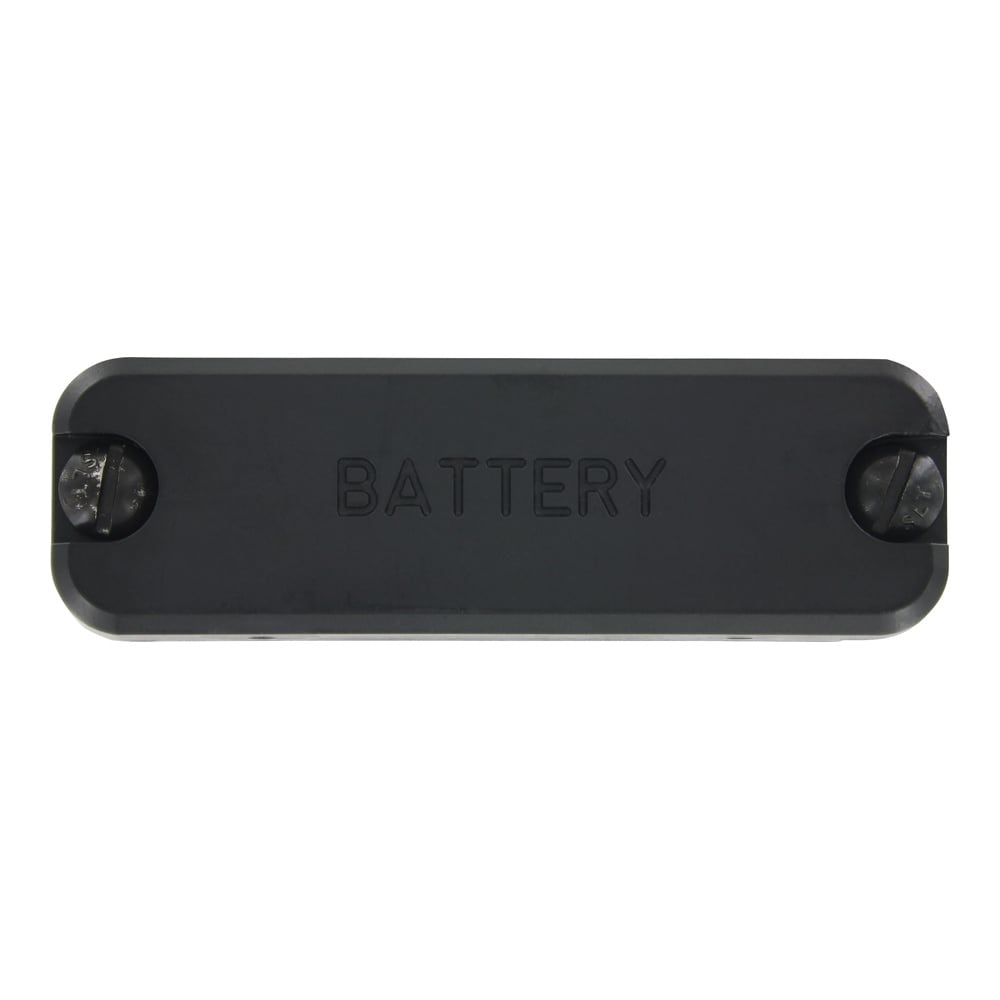

• Power: 9 V alkaline battery, installed non-functional and user replaceable.
• Weight: 14.1 oz (400 g); with the -HKIT option, 3.6 lb (1.63 kg).

Standard process connections are two 1/8" (3.18 mm) female NPT, with wetted materials of 316 SS. The -HKIT option instead uses two 1/4" male 45° flare fittings with 316LSS, PTFE, brass and copper wetted parts, and an optional 3-Way Valve is also available.

Configuration Options

Models differ by pressure range and maximum pressure, so the same handheld platform covers everything from low-pressure balancing up to high-pressure testing.

• 490A-1 — 0 to 15 psi; maximum 30 psi.
• 490A-2 — 0 to 30 psi; maximum 60 psi.
• 490A-3 — 0 to 50 psi; maximum 100 psi.
• 490A-4 — 0 to 100 psi; maximum 200 psi.
• 490A-6 — 0 to 200 psi; maximum 400 psi.
• 490A-5 — 0 to 500 psi; maximum 1000 psi.

Any range can be ordered as a complete hydronic kit by adding the -HKIT suffix (for example 490A-1-HKIT), which packages the manometer with all attachments needed for balancing, measuring and pressure testing.

Key Product Differences

The base model number is 490A-<range>, and the hydronic kit is 490A-<range>-HKIT. The range lineup is:

• 490A-1 — 0 to 15 psi.
• 490A-2 — 0 to 30 psi.
• 490A-3 — 0 to 50 psi.
• 490A-4 — 0 to 100 psi.
• 490A-5 — 0 to 500 psi.
• 490A-6 — 0 to 200 psi.

The -HKIT field replacement parts include the A-HKIT-AFIT adapter fitting kit, A-HKIT-BFIT bleed fitting assembly, A-HKIT-HOSES charging hoses, and the A-HKIT-500, A-HKIT-500XL and A-HKIT-510 piercing gauge adapters. Additional accessories include the A-402A carrying case, A-47X-BOOT rubber boot, UHH-STRAP and A-203 PVC tubing.
