Series-IWP

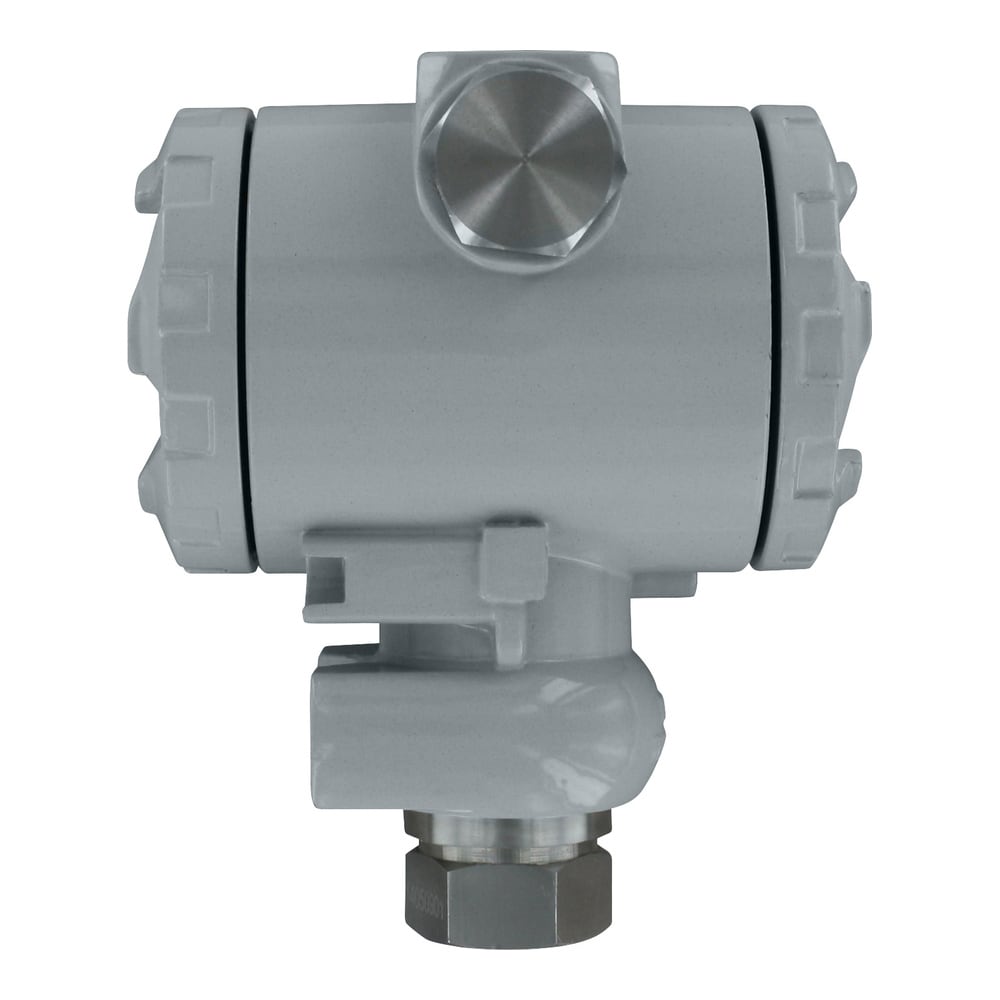

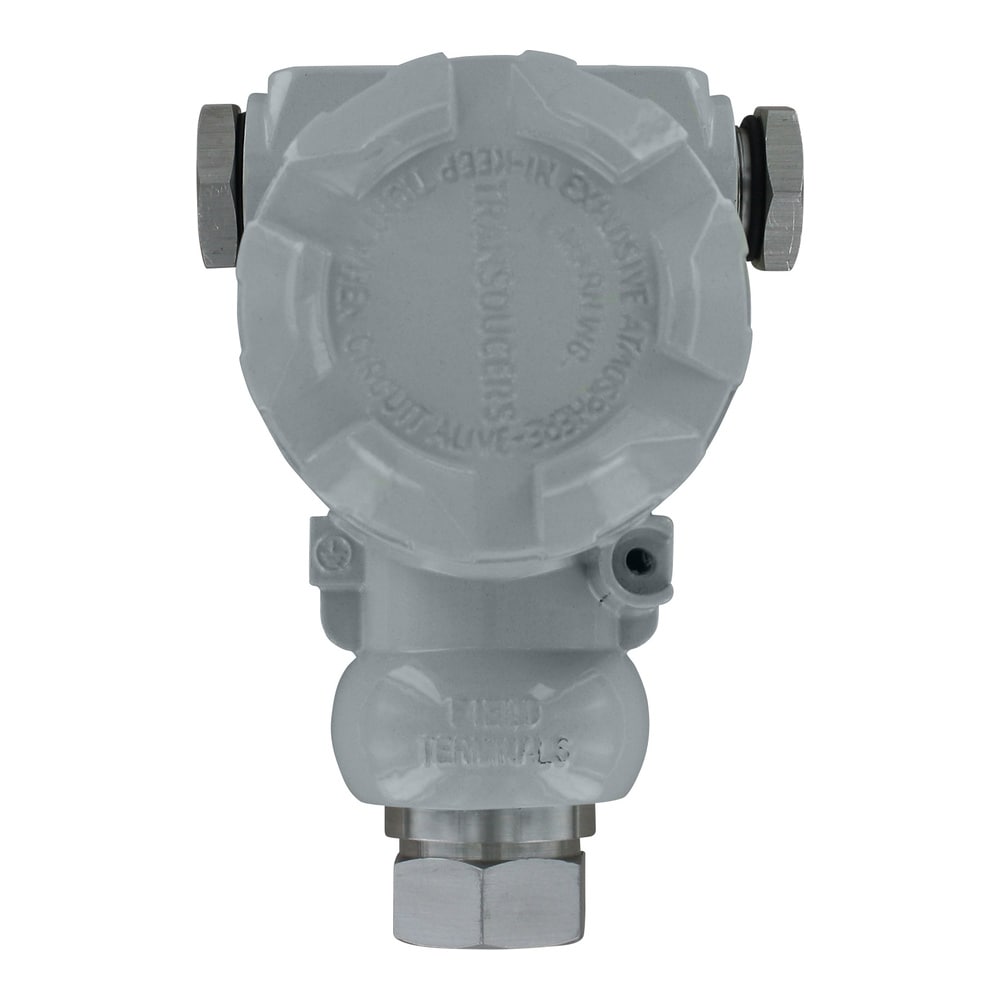

Cost-Effective Industrial Pressure Transmitter – Durable & Stable
- Rugged, weather-proof design supports use in harsh environments
- 4 digit LED display and 4 to 20 mA output
- Durable cast-aluminum shell securely protects the high-quality circuitry from harsh industrial surroundings
- Long-term stability and reliability in environmentally challenging conditions
- Built for industrial processes such as petroleum, chemical and metallurgy but at a value price-point compared to other similar products.
Series-IWP
From
AUD
1,260.91
Product Overview
- Accuracy ± 0.5 %
- Accuracy Detail 0.5% FS
- Applications Chemicals, Fuel and Gas, Petrochemical
- Compensated Temperature, Max 158 °F
- Compensated Temperature, Min 32 °F
- Display Type LED
- Electrical Connection 1/2 in NPT female Conduit with Screw Terminal block
- Electrical Output 4 to 20 mA
- Enclosure Ratings IP65
- Loop Resistance 1200 Ω max
- Materials, Wetted 304 Stainless Steel, 316 Stainless Steel
- Media Compatibility Clean dry air / inert gas, Clean process / cooling water, Compatible Liquids, Inert / non-reactive gases, Oils / lubricants, Organic solvents, Water
- Operating Temperature, Max 203 °F
- Operating Temperature, Min -22 °F
- Output Detail 4 to 20 mA
- Output Signal Current
- Process Connection Size 1/2 in
- Process Connection Type NPT Female
- Proof Pressure Up to 45 psi
- Series ID Series-IWP
- Stability <0.2% FS/year
- Supply Power Type DC
- Supply Voltage 12 to 36 Vdc
- Temperature Coefficient 0.3% FS/10°C
Supported Applications
The Dwyer Series IWP Industrial Weatherproof Pressure Transmitter is designed for pressure measurement in industrial conditions requiring high-performance, stability, and long service life. The transmitter delivers a precise operation under dirty and wet conditions, making it an ideal choice for petroleum, chemical, and metallurgical industry applications.
Operating Conditions & Performance
The Series IWP measures gases and liquids compatible with 304 and 316 stainless steel wetted materials. The transmitter provides a measurement accuracy of 0.5% FS with stability less than 0.2% FS per year. A temperature coefficient of 0.3% F.S. per 10°C is specified.
Operating conditions are defined by the following limits:
- Temperature Limits (Process): -22 to 203°F (-30 to 95°C)
- Compensated Temperature Limits (Ambient): 32 to 158°F (0 to 70°C)
- Pressure Limits: 1.5 x pressure range
- Enclosure Rating: IP65
The unit operates on a power supply of 12-36 VDC and provides an output signal of 4-20 mA with a maximum loop resistance of 1200 Ω.
Configuration Options
The Series IWP is offered in multiple pressure ranges to accommodate specific process requirements. Available measurement ranges include:
- 30 psig (Model suffix -00)
- 50 psig (Model suffix -01)
- 100 psig (Model suffix -02)
- 200 psig (Model suffix -03)
- 300 psig (Model suffix -04)
- 500 psig (Model suffix -05)
- 30 psia (Model suffix -10)

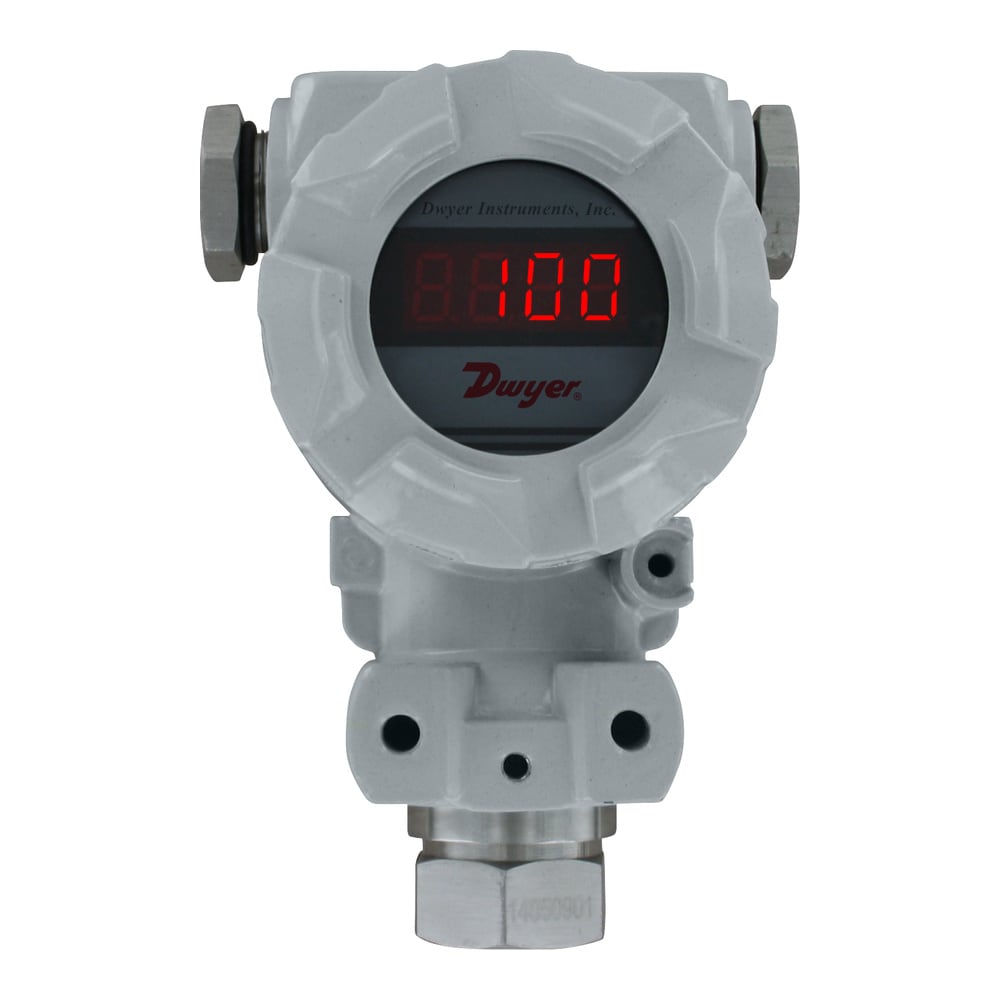

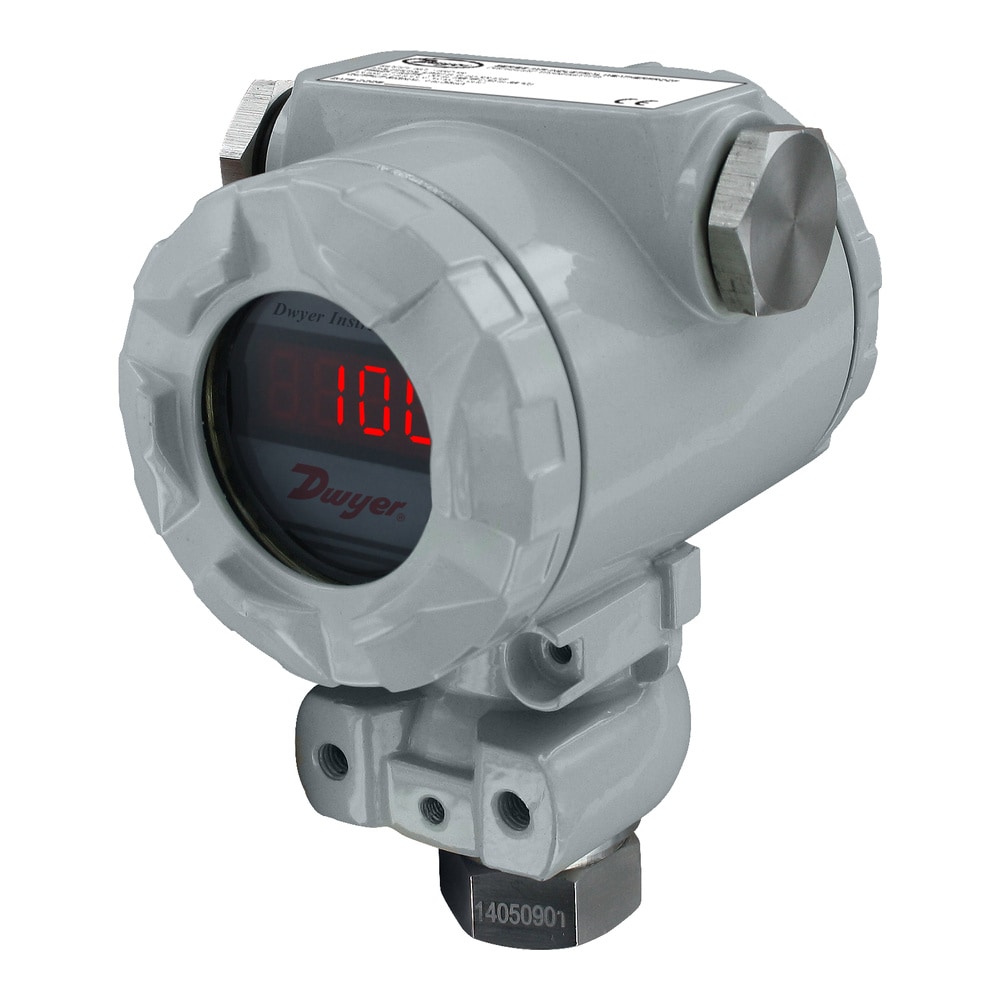

The transmitter features a durable cast-aluminum shell with 1/2" female NPT connections for both the process and electrical conduit entry. A 4-digit LED display allows for field inspection of pressure in psi units.
Options & Accessories
- -NISTCAL-PT1: NIST traceable calibration certificate
The model number guide follows the format: IWP - <RANGE> - <OPTIONS>.
Key Product Differences
Variants within the Series IWP are distinguished primarily by their pressure range and optional calibration certification. The base model provides standard accuracy, while models ordered with the -NISTCAL-PT1 option include a NIST traceable calibration certificate.
