Series-SFI-100T

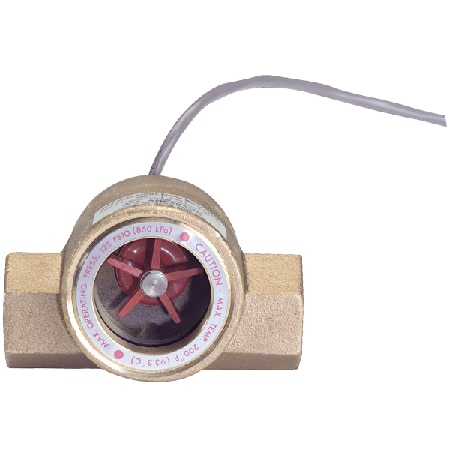

SFI-100T Sight Flow Indicator & Transmitter for HVAC & Chillers
- Constructed of a robust, solid brass body and a tempered glass window
- Bright red impeller yields great visual indication of flow through the window
- Front window can be easily unscrewed to clean out the sight flow indicator
- Ideal for outdoor applications with weatherproof body that is unaffected by UV light
Series-SFI-100T
From
C$
671.35
Product Overview
- Accuracy ± 5 %
- Electrical Connection Pigtail Leads
- Electrical Connection Note Black Lead: Ground; White Lead: 5 VDC Out Pulse; Green Lead: 8-28 VDC Out Pulse; Red Lead: 8-28 VDC Supply
- Materials, Wetted 300 Stainless Steel, 316 Stainless Steel, Brass, Buna-N (NBR), PBT, Tempered Glass
- Media Compatibility Consult Factory
- Mounting Orientation Horizontal
- Operating Temperature, Max 200 °F
- Operating Temperature, Min -20 °F
- Output Detail 5 Vdc, Frequency: 0 to 100 Hz and White led: 5 VDC. Green led: 8-28 VDC equal to supply voltage. Pulsed Output with Frequency Rate Proportional to Flow Rate
- Output Signal DC Pulse
- Port 1 Type NPT Female
- Proof Pressure Up to 125 psi
- Supply Power Type DC
- Supply Voltage 8 to 28 Vdc
- Viscosity Range 200 SSU
The Series SFI-100T Sight Flow Indicators & Transmitters is a low cost and durable flow transmitter that combines our popular 100 Series Sight Flow Indicator with our A-711T output sensor for visual and remote monitoring of flow. The A-711T output sensor has two pulsed voltage signals with one providing a 5 VDC pulse, the other a pulse of the input supply voltage used, ranging from 8 to 28 VDC and a pulsed output with a frequency change proportional to the flow rate.
Product Applications
- Monitor chilled or hot water flow
- Monitoring water flow in chillers
- Cooling and lubrication circuits
- HVAC systems
