CN8100-Series

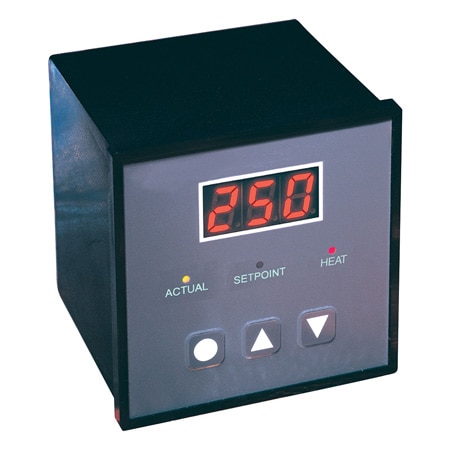

1/4 DIN Digital Temperature and Limit Controllers Family
This product is no longer available. For a possible alternate, please see CNI8-AL
- Large, Easy-to-Read LED Display, Selectable for Either Setpoint or Process Temperature
- Type J or K Thermocouple Input For PID Controllers
- Type J Thermocouple Input For ON-OFF or LimitControllers
- ON-OFF and PID Contollers Can Be Ordered with One or Two Outputs.Output One: 5Amp Relay or 2 Aac SSR. Output Two:5 Amp Relay or 1 Aac SSR
CN8100-Series
From
C$
660.33
Product Overview
- Accuracy ± 0.3 %
- Accuracy Detail ±0.3% of FS, ±1 digit Setpoint
- Additional Features 1 Heat Only
- Control Characteristics Control Hysteresis: 1 to 140°C (2 to 252°F) Display Offset: -70 to 70°C (-126 to 126°F) Deviation Alarm: Off, 1 to 140°C (Off, 1 to 252°F)
- Cutout Dimensions 92 × 92 mm
- DIN Rail Size 0.25 mm
- Display and Indications Setpoint: Amber,Actual: Amber,Heat: Orange,Cool: Orange
- Display Size 14 mm (.56 in)
- Display Type 3 Digit LED
- Display Type Note 3-digit, 14 mm (0.56") orange LED
- Electrical Connection Fast-on Style 0.250 in Wide
- Enclosure Ratings IP65, NEMA Type 4X
- Form factor 1/4 DIN
- Height 96 mm
- Input Type Thermocouple
- Lead Resistance, Max 100 Ω
- Length 6.35 mm
- Measuring Range PID Control Thermocouple Type J: 0 to 485°C Type K: -17 to 537°C ON/OFF and Limit Thermocouple Type J: 0 to 485°C
- Memory Backup Non-Volatile
- Noise Rejection Common mode >100 dB, Series mode >70 dB
- Number of Inputs 1
- Number of Outputs 1
- Operating Temperature, Max 60 °C
- Operating Temperature, Min 0 °C
- Output Detail Electromechanical relay, 5 A @ 250 Vac, 5 A @ 30 Vdc, solid-state relay, 120/240 Vac, 0 voltage switched, 2 A continuous (output 1), 0.5 A continuous (output 2) 10 A surge @ 25°C (77°F), pulsed DC 5V for external SSR
- Panel Depth 88.9 mm
- Power Consumption 6 VA
- Relative Humidity 0.9
- Repeatability ±1.0 count
- Sampling Rate 3.7 Hz (3.7 updates/second)
- Setpoint Resolution 1 count
- Supply Power Note Line Voltage: 85 to 250 Vac, 50/60 Hz, 120 to 300 Vdc (auto polarity)
- Supply Power Type AC
- Supply Voltage 85 to 250 Vac
- Temperature Stability 5µV/°C maximum
- Thermocouple Cold End Tracking ±0.05°C/ °C ambient
- Weight 737 g
- Width 96 mm
The CN8100 Series may be ordered as either a PID or On/Off controller or as a Limit Safety Device.The 1/4; DIN models are low cost and ideal for OEM or replacement applications. They are microprocessor-based and accurate to ± 0.3% FS.
As a separate safety feature to your control application, the CN8121-R1 high limit safety device provides reliable high/low temperature limit shut-off control for most machine and process control applications including environmental chambers, furnaces, ovens and packaging machinery. As a high limit device, these controllers have a normally energized SPDT latching output relay which becomes de-energized whenever the process variable (PV) exceeds a selected setpoint value. Reset of the latching output relay is done from a reset pushbutton on the front panel of the controller.
