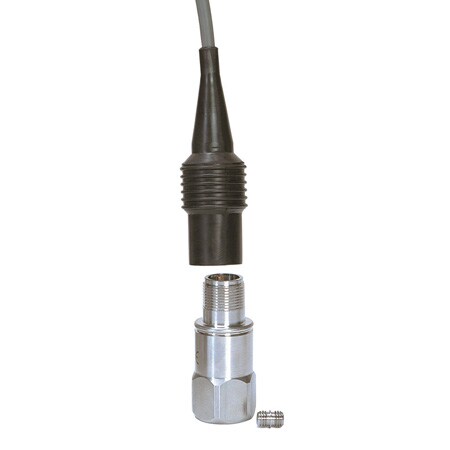

ACC786A-series
Industrial, Top Mount Accelerometers
- Top Mount Design
- Rugged Industrial Designed Accelerometers
- Corrosion Resistant
- Hermetic Seal
ACC786A-series
From
C$
419.35
Product Overview
- Status Control false
- Additional Features 1 Top Mount Industrial Grade
- Bandwidth ±5%: 3 to 5000 Hz,±10%: 1 to 9000 Hz,±3 dB: 0.5 to 14,000 Hz
- Electrical Output 12 Vdc
- Enclosure Material 316L Stainless Steel
- Ground Isolated Case
- Inrush Current 2 to 10 mA
- Linearity Error 0.01
- Mating Connector Amphenol 97-3106A-10SL-4S type
- Measuring Range ±80 g
- Mounting UNF Tapped Hole
- Mounting Note 1/4-28 UNF tapped hole
- Natural frequency 30 kHz
- Noise Calibration Electrical Noise, Equiv. g:,Broadband: 2.5 Hz to 25 kHz: 700 µg,Spectral: 10 Hz: 10 µg√Hz,100 Hz: 5 µg√Hz,1000 Hz: 5 µg√Hz
- Operating Temperature, Max 120 °C
- Operating Temperature, Min -50 °C
- Output Resistance 100 Ω
- Overload Capacity 5000 g peak
- Seal Options Hermetic
- Sensitivity Note Transverse Sensitivity, Max: 5% of axial, Electromagnetic Sensitivity, Max: 70 µg/gauss,Strain Sensitivity: Max 0.0002 g/microstrain
- Sensor Type Shear Type (ring), Piezo-electric
- Supply Voltage 18 to 30 Vdc
- Vibration 500 g peak
- Weight 90 g
The OMEGAROMETER series accelerometers are designed for industrial vibration measurements. They feature a hermetically sealed 316L stainless steel case suitable for harsh environments. The ACC786A is a general purpose accelerometer with a top cable exit.
