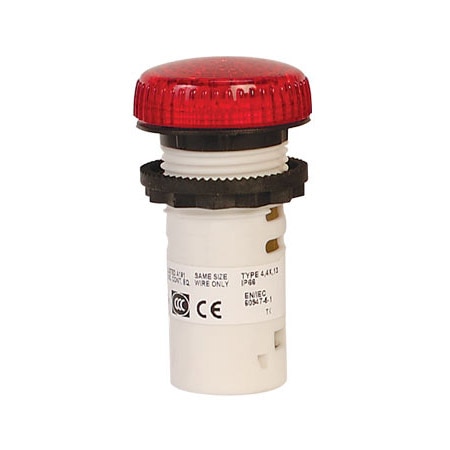

OMPBD7D-P

22 mm Indicating Lights, NEMA4/4x/13 IP66, Wash Down Environments

5,0

(1)

Modèles en stock

Optically Enhanced Lens Style
Complete One Piece Panel Mounting–Bulb Included
Incandescent or LED Bulbs Available for Multiple Voltages
One Piece Part Number for Easy Ordering

Voir l'aperçu du produit

OMPBD7D-P

Depuis ^C$ 114.99

Modèles en stock

Modèles de boutique

Plus de variantes disponibles

Voir toutes les options de séries ci-dessous

L'aperçu du produit

Accessory Type N/A
Approvals Certifications: UL, CSA, CCC, CE Conformity to Standards-CE Marked: UL 508, EN 60947-1, EN 60947-5-1, EN 60947-5-5 Terminal Identification: EN/IEC 60947-1
Contact Blocks N/A
Mechanical Life 2,000,000 Cycles
Mounting Torque (Front-of-Panel) N/A
Operating Forces (Front-of-Panel) N/A
Operating Temperature, Max 60 °C
Operating Temperature, Min -25 °C
Pushbutton Material N/A
Pushbutton Size N/A
Relative Humidity 50 to 95% RH
Relative Humidity Note 50 to 95% RH from 25 to 60˚C (77 to 140˚F)
Storage Temperature, Max 85 °C
Storage Temperature, Min -40 °C
Switch Type N/A
Thermal Current 5 A max
Tightening Torque 0.7 to 0.9 Nm (6 to 8 lb-in)
Vibration and Shock Vibration Assembled to Panel: Tested at 10 to 2000 Hz, 1.52 mm displacement (peak-to-peak) max/10 G max for 3 hr duration, no damage;Shock: Tested at 1⁄2 cycle sine wave for 11 ms; no damage at 100 G
Wire Gauge 18 to 14 AWG
Wire Gauge Note Screw terminal : #18 to 14 AWG (0.75 to 2.5 mm2), max (2) #14 AWG, uses same size wire only

The D7D Monolithic Series indicating lights provide a cost effective</div><div>range for 22.5 mm signal control devices. Constructed from high</div><div>quality industrial grade thermoplastic, these pilot lights feature a</div><div>unique one piece body that incorporates both the front and rear</div><div>panel components and the bulb into one element for quick</div><div>assembly and ease of ordering.</div><div> These indicating lights are corrosion</div><div> and UV resistant and meet the</div><div>requirements for NEMA Type 4/4x/13 and IP65/66 sealing. These </div><div>indicating lights </div><div>incorporate a low mounting profile and have an optically enhanced</div><div>lens. The integrated LED bulbs have superior shock and vibration</div><div>ratings, a life rating of up to 100,000 hours and leakage current</div><div>protection up to 3 mA. LED bulbs are available in 24 Vac/dc,</div><div>120 and 240 Vac. The incandescent bulbs are front replaceable and</div><div>are available in 6, 12, 24, 48 and 120 volts.<font size=""1""><font color=""white""></font></font></div><div><font size=""1""><font color=""white"">D7D-P0N3, D7D-P0N2, D7D-P0N5, D7D-P3N2, D7D-P3N3, D7D-P3N5, </font></font></div><div><font size=""1""><font color=""white"">D7D-P4N2, D7D-P4N3, D7D-P4N5, D7D-P5N2, D7D-P5N3, D7D-P5N5</font></font></div><div><font size=""1""> </font>
