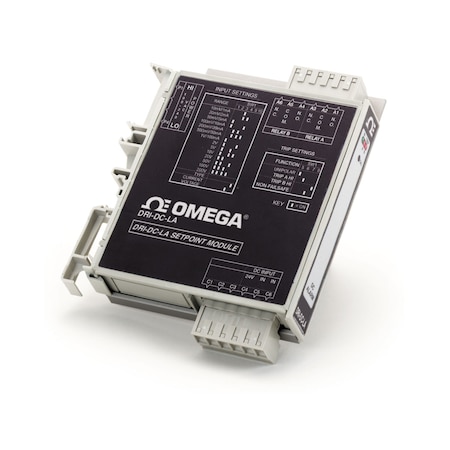

DRI-DC-LA

AC Powered DC Input DIN Rail Limit Alarm

Article# DRI-DC-LA

Spécifications du produit

<< Voir toutes les modèles de produits
Brand
Additional Features 1 No Failsafe
Common Mode Rejection DC to 60 Hz: 120 dB
Control Output 2 SPDT Relay
Current, Max 0 to 20 mA
Deadband 0.25 %
Deadband Note Relay status will change when proper setpoint/process condition exists for 100 msec
ESD Susceptibility IEC 801-2 (Level 3: 8 KV)
Electrical Connection Screw Terminal
Electrical Life 10^5 operations at rated load (external relay contact protection is required for use with inductive loads)
Electrical Rating Note 120 Vac, 5A; 240 Vac, 2A; 28 Vdc, 5A
Humidity Range 15 to 95% RH
Input Analog Filter < 250 msec (10 to 90%)
Input Type Current
Input Voltage Note 10 mV, 20 mV, 50 mV, 100 mV, 200 mV, 500 mV, 1V, 2V, 5V, 10V, 20V, 50V, 100V, 200V (dip-switch selectable) Impedance: >100 kΩ Overvoltage: 200 Vrms max
Input_Current Note 1 mA, 2 mA, 5 mA, 10 mA, 20 mA, 50 mA, 100 mA (dip-switch selectable) Impedance: 20 Ω typical Overcurrent: 170 mA rms max Overvoltage: 60 Vdc (self-resetting fuse) Common Mode (Input to Gnd): 1800 Vdc max
Isolation 1800 Vdc between contacts, input and power
LED Indicators Input (Green): >110% input: 8 Hz flash; < 10% input: 4 Hz flash ,Setpoint (Red):,Tripped: Solid red ,Safe: Off
Limit Differentials (Deadbands) >50 mV/5 mA: 0.25 to 100% of span,<50 mV/5 mA: 1 to 100% of span
Materials Gold-Plated Contacts
Mechanical Life 10^7 operations
Number of Outputs 2
Operating Temperature, Max 55 °C
Operating Temperature, Min 0 °C
Power Consumption 2.5 W
Relative Humidity Note 90% RH for 24 hours @ 65°C Max Soak
Relay Output Note A: HI, B: LO
Set Point Adjustable over 100% of span
Status Control false
Storage Temperature, Max 70 °C
Storage Temperature, Min -25 °C
Supply Power Note 100 to 240 Vac ±10%, 50 to 400 Hz; 2.5 W max
Supply Voltage 100 to 240 Vac
Temperature Stability +0.05% of full scale/°C max
Weight 254 g
Wire Gauge 22 to 12 AWG
Voir toutes Spécs Montrer moins
