E57-SD-Series

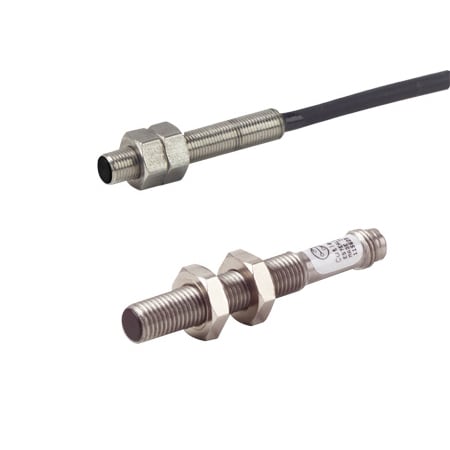

Small Diameter Inductive Proximity Sensors, range from 0.8 to 3 mm
Models In Stock
- Small 5 and 8 mm Diameters for Use in Applications with Limited Space for Mounting Sensors
- Stainless Steel or Ni-Brass Housings
- All Models Include an LED Indicator to Show Output Status
- Short Circuit and Reverse Polarity Protection
E57-SD-Series
From
C$
192.97
Models In Stock
Product Overview
- Accuracy Detail < 1% Sensing Distance
- Cable Material PVC
- Drop 1.5 V
- Enclosure Ratings IP67, NEMA 4, NEMA 6P, NEMA Type 12, NEMA Type 13, NEMA Type 4X, NEMA Type 6
- Housing Material Stainless Steel, Brass
- Hysteresis < 15% Sensing Distance
- Leakage Current 0.01 mA
- Length 25 mm
- Current, Max Note Load Current, Max: 200 mA,Burden Current, Max: 10 mA
- Operating Temperature, Max 70 °C
- Operating Temperature, Min -25 °C
- Protection Power on false pulse suppression, auto-reset short circuit
- RF Frequency 2 kHz
- Sensor Type 3-Wire, N.O. Output, NPN
- Supply Voltage 10 to 30 Vdc
- Time Delay < 50 ms
- Wire Gauge 22 AWG
These unique Cutler-Hammer® Inductive Proximity Sensors are designed to be used in extremely small spaces. A wide variety of models are available with housing diameters of 8 mm (0.31') and a very small 5 mm (0.20'), allowing you to choose the one that best fits your application. The sensors are 3-wire devices that operate from 10 to 30 Vdc. Both shielded and un-shielded versions are available.
PDFs & Manuals
Show Ratings & Reviews
How close can these sensors be placed beside each other? Is there interference between them? Do the shielded modes reduce/prevent this?
Thank you for your inquiry. Please email your question to automation@omega.com and we will review and advise.
Date published: 2020-04-28
