FCDH

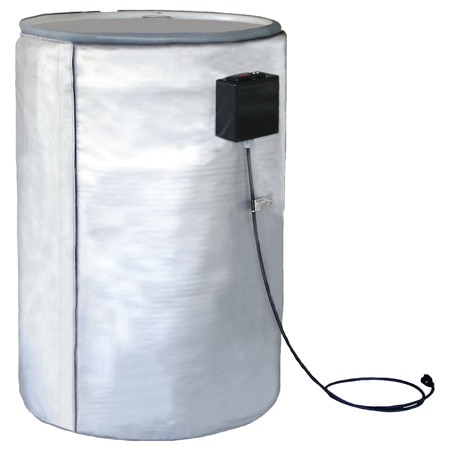

Silicone Fiberglass Drum Heater up to 1600 W
- 55 Gallon Drum Wraparound
- Full-Coverage Insulated
- Easy-to-Use Digital Temperature Controller
- Audible/Visual Alarm
Product Overview
- Barrel Size 55 Gallon
- Cable Length 1.8 m
- Cable Length Note 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models
- Dielectric Strength Over 2000V
- Exposure Temperature, Max 260 °C
- Height 0 mm
- Insulation Fiberglass
- Operating Temperature, Min 10 °C
- Sheath Material Silicone-coated fiberglass
- Thermostat Range N/A
- Thickness 1 in
The FCDH Series consists of full-coverage insulated drum heaters that provide a safe and efficient method of temperature and viscosity control. An easy-to-use digital temperature controller prevents temperature runaway. These heaters use a patented grounded heating element and are designed for indoor use when it is desirable to insulate the entire surface of the drum.
SPECIFICATIONS
Metal Drums: 10 to 232°C (50 to 450°F)
Poly Drums: 10 to 71°C (50 to 160°F)
Max Exposure Temperature: 260°C (500°F)
Outer Sheath: Silicone-coated fiberglass facing
Inner Sheath: Silicone-coated fiberglass liner
Insulation: 25.4 mm (1') fiberglass
Dielectric Strength: Over 2000V
Power Cord: 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models
Power: 120 or 240 Vac
SPECIFICATIONS
Metal Drums: 10 to 232°C (50 to 450°F)
Poly Drums: 10 to 71°C (50 to 160°F)
Max Exposure Temperature: 260°C (500°F)
Outer Sheath: Silicone-coated fiberglass facing
Inner Sheath: Silicone-coated fiberglass liner
Insulation: 25.4 mm (1') fiberglass
Dielectric Strength: Over 2000V
Power Cord: 1.8 m (6') with plug on 120V models, stripped lead ends on 240V models
Power: 120 or 240 Vac
Accessories
Show Ratings & Reviews
Does the heating element extend the full length of the barrel from top to bottom?
The Heating element is in the bottom third of the product.
Date published: 2021-06-14
