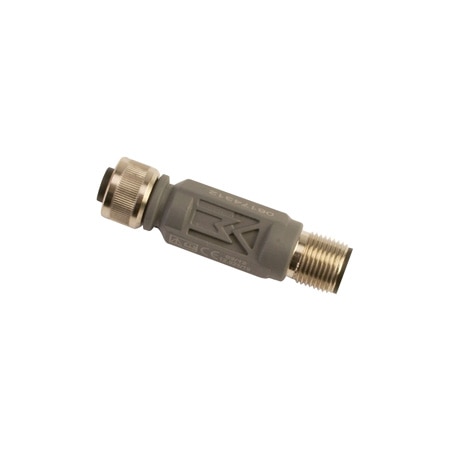

M12TX-PT100-Series
Inline Temperature Transmitter for PT100 RTDs
Models In Stock
- Programmable Inline Transmitter for RTDs
- Water Resistant Molded M12 Connector (IP67)
- Secure M12 Connection
- User Programmable Software Available
Product Overview
- Accuracy Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751
- Accuracy Detail Transmitter: ± 0.2 °C or ± 0.2 % of Span, Sensor: Class A in accordance to IEC751
- Approvals CE
- Diameter 15 mm
- Electrical Connection M12 4 pin Male
- Electrical Output 4 to 20 mA
- EMC In accordance to EN 61326
- Enclosure Ratings IP65, IP67
- Factory Setting 0 to 150°C
- Input Configuration M12TX-CONFIG-SET configuration kit (PC with OS Windows® required)
- Input Electrical Connection M12 4 pin Female
- Input Noise 0 to 1.5 Hz: 1.4 µVRMS (RTI)
- Input Range -50 to 500 °C
- Isolation Non-isolated
- Load Resistance 700Ω @ 24Vdc, [RLo= (Vsupply-8,5)/0,020]
- Materials Thermoplastic
- Operating Temperature, Max 80 °C
- Operating Temperature, Min -40 °C
- Output Signal Current
- Protection Supply Protection: polarity protected
- Relative Humidity 0 to 100%
- Response Time <50 ms
- Response Time Note <50 ms @ 90%
- Sensor Break Detection Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action;Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action
- Sensor Error Compensation Note Over 2 points (maximum 1% of span)
- Sensor Type 100 Ω RTD
- Span, Min 50°C
- Span Note 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]
- Supply Power 8.5 to 32 Vdc
- Supply Power Type DC
- Temperature Coefficient α = 0.00385/°C
- Temperature Influence, Max ± 0.3°C/25°C or ± 0.3% of span/25°C
- Zero Setting Adjustable Range -50 to 50°C
Description
The M12TX temperature transmitter for pt100 RTD is easily ranged and programmable by a computer.The configuration kit required forprogramming is M12TX-CONFIG.This unique transmitter is idealfor areas with space limitationswhere traditional headconnections are too large to fit.The M12 thread design offers asecure industrial connection. Theintegrated connection allows thetransmitter to be mounted directlyon to the sensor.Specifications
Body: Thermoplastic material
Connection:
M12x1 Male: In accordance to VDE0627 (output connection)
M12x1 Female: In accordance to VDE0627 (input connection Pt100)
Sensor: RTD Pt100 (alpha symbol 0.00385) 3-wire connection
Range: -50 to 500°C (-58 to 932°F)
Sensor Break Monitoring:
Selectable: Upscale (>21.0 mA) or downscale (<3.6 mA) action
Sensor Short-Circuit: Fixed to downscale (<3.6 mA) action
OutputSignal: 4 to 20 mA
Factory Scaling: 4 to 20 mA Output = 0 to 150°C Default Setting
Permissible Load: 700 @ 24Vdc [RLo= (Vsupply-8,5)/0,020]
Response Time (90%): <50 ms
Isolation In-Out: Non-isolated
Power Supply: 8.5 to 32 Vdc (polarity protected)
Environment Conditions
Temperature: -40 to 80°C (-40 to 176°F) (for plastic body)
Relative Humidity: 0 to 100%
EMC: In accordance to EN 61326
Degree of Protection: IP65 and IP67 in accordance to IEC60529
Accuracy
Transmitter: Maximum of ±0,2°C or ±0.2% of span
Sensor: Class A in accordance to IEC751
Temperature Influence [Deviation from 20°C (68°F)]: Maximum of ±0.3°C/25°C (77°F) or ±0.3% of span/25°C (77°F)
Supply Voltage Influence: Negligible
Range Configurations: It is possible set the input temperature range (span) by the M12TX-CONFIG configuration kit (PC with OS Windows® required)
Zero Adjustments: Any value between -50 to 50°C (-58 to 122°F)
Minimum Span: 50°C (122°F) [if the zero value is set between one of these values: -40°C (-40°F), -20°C (-4°F), 0°C (32°F), 20°C (68°F), 40°C (104°F), the minimum span is 20°C (68°F) rather than 50°C (122°F)]
Sensor Error Compensation: Over 2 points (maximum 1% of span)
Factory Setting: 0 to 150°C (32 to 302°F)/sensor break >21 mA (upscale)
*The M12TX-PT100 is compatible with all sensors with a "-2" European wiring option.
For example: PR-26A-3-100-A-1/4-1200-M12-2, the -2 at the end of the part number specifies the wiring.
The PR-22 probes have standard european wiring.
